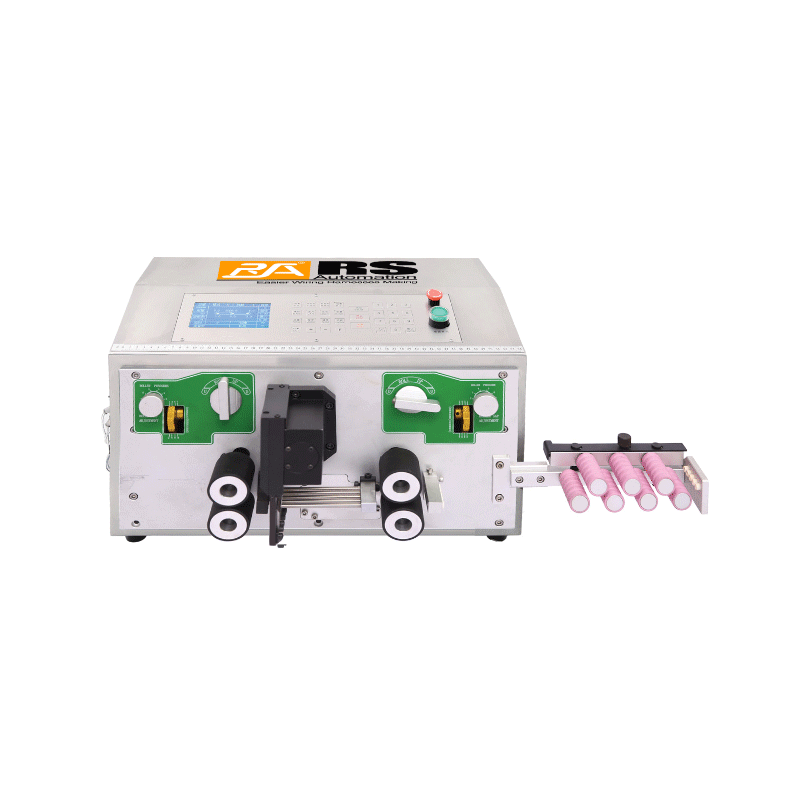

High Speed Wire Cutting & Stripping Machine RSM-WCS-40G

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
Five wires can be processed simultaneously,which is faster and can save time
Supported automatically high-speed wire cutting,single or both ends stripping suitable for large wire processing companies
99 storage information can be used randomly,which makes your processing program easier to reduce wire waste
Adopt 5 inch HMI which is visualized and easy operation
Adopt self-compensation function,which can greatly reduce the length error
Applicable wire:#14 AWG-#28 AWG only need to change the catheter different wire can be processed
Specification

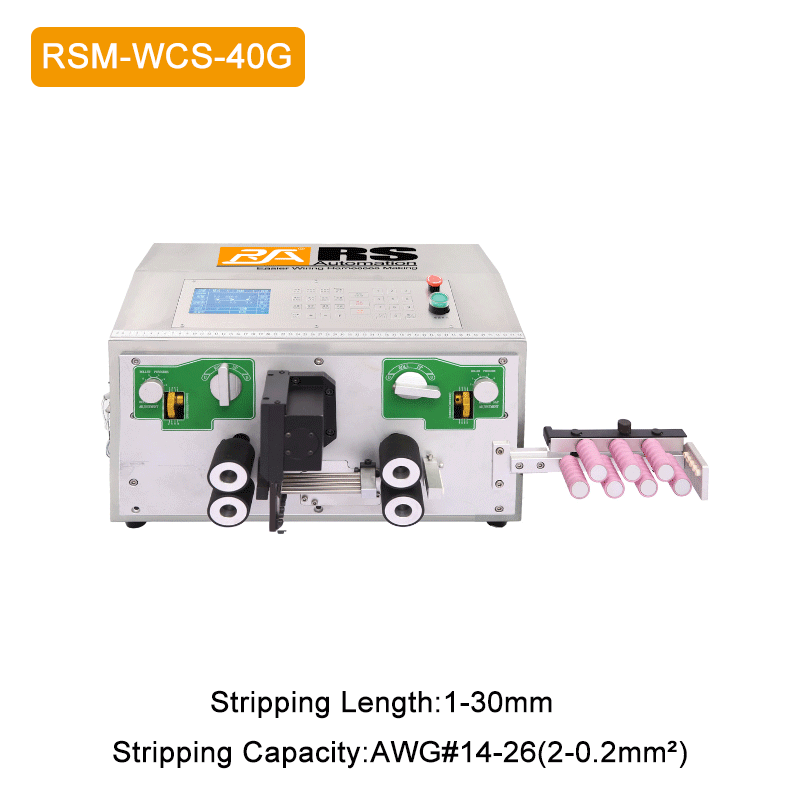

Model RSM-WCS-40G
Productivity  300 pcs/min,L=100mm
Weight 40Kg
Voltage AC220V，Single Phase
Cutting Length 45-9999mm
Cutting Tolerance ≤±(0.2+0.002*L(L=Cutting Length)
Stripping Length
1-30mm
Stripping Capacity
 AWG#14—26(0.2-2mm²)
Dimension
 L430*W450*H300mm

PDF Specification Download
RSM-WCS-40G.Pdf
