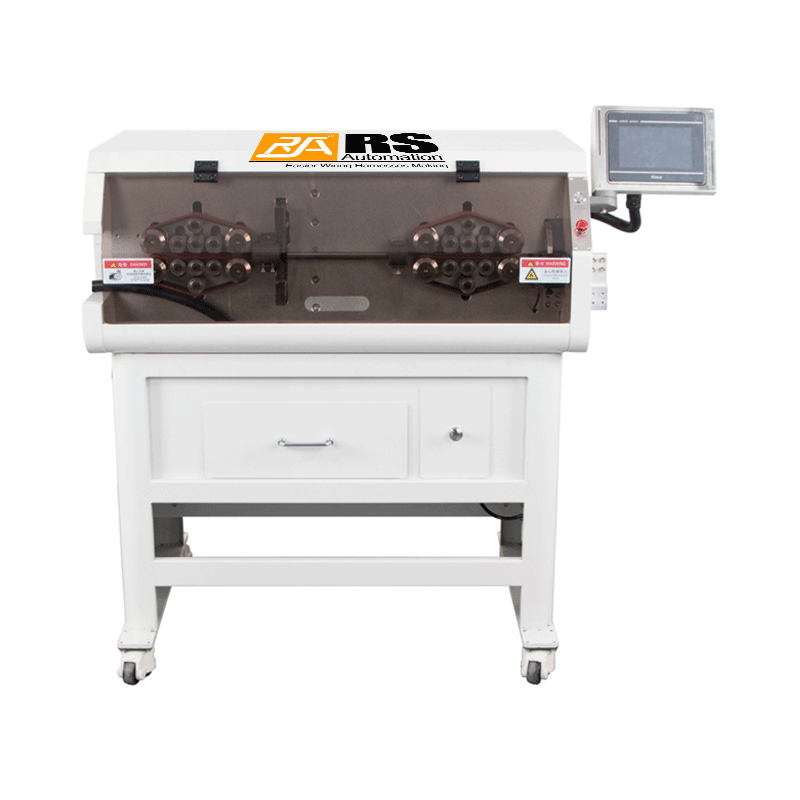

Sheath Cable Cutting & Stripping Machine RSM-WCS-8150Q

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Specification

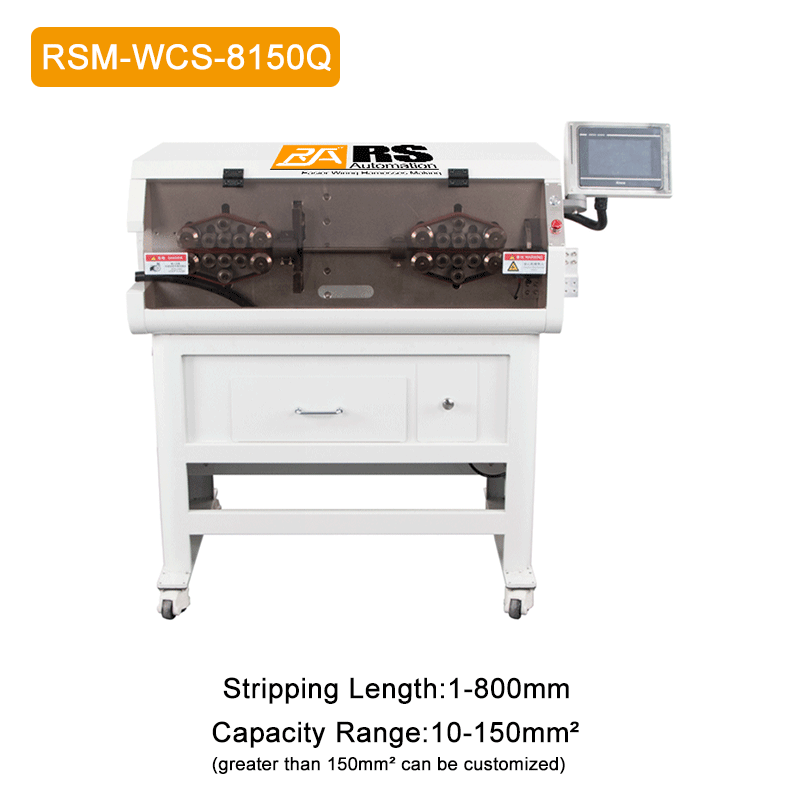

Model RSM-WCS-8150Q
Display Way
 7 inch HMI
Function Cable cutting & stripping
Cable Type
 PVC cable，sheath cable
Capacity Range
 1-150mm² (Greater than 150mm²can be customized)
Cutting Length 1mm-99999.99mm
Cutting Tolerance
 Within 0.002xL（L=Cutting Length)
Stripping Length
 Front end：1-180mm
Rear end：no
Guiding Tube I.D. Φ33
Productivity 1800pcs/h（Depending on the length of the line,depending on the size）
Dynamic Source
 Cutter servo motor，feeding stepper motor（Full servo is optional）
Feeding Way
 Conveyor belt,no imprint and scratch cable,16wheel drive
Power
220V/50HZ±10%
Installed Capacity
 1.6KW
Full Load Current
 18A（Allow to min.Current 10A）
Special Function 1
 Machine can be customized base on the sample if the cable is unique
Special Function 2
 Stripping and crimping insulation,full stripping front end,encode machine
Miscellaneous Function
 Material collected gripper,Material collected manipulator,wire collected rack(Module insulation should be added when using it)
Net Size
 900*710*560 mm
Packing Dimension
 1000*810*760 mm

PDF Specification Download
RSM-WCS-8150Q.Pdf
