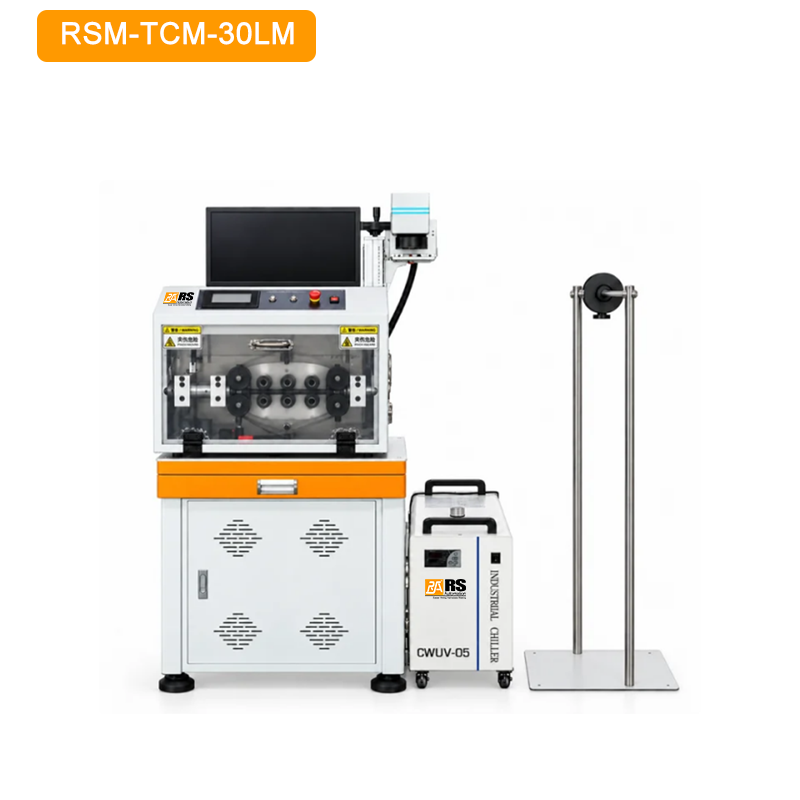

Laser Marking & Tube Cutting Machine RSM-TCM-30LM

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature

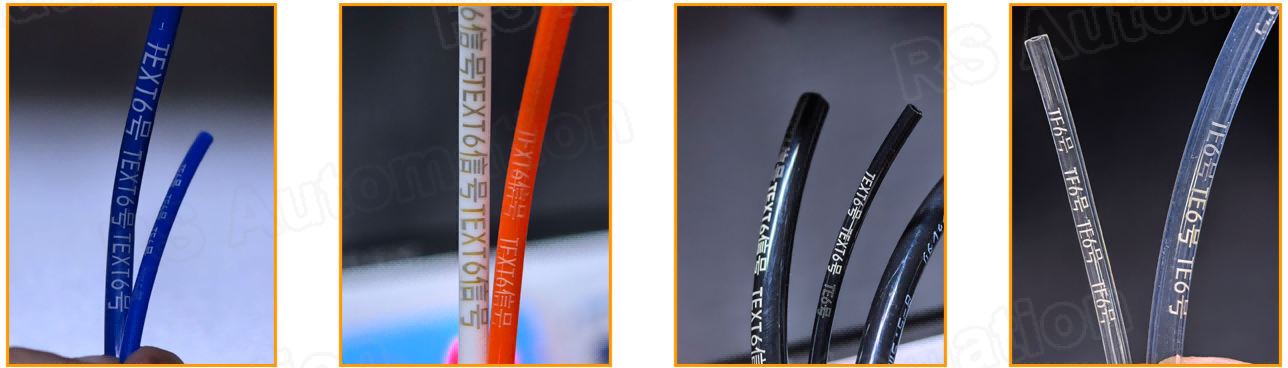

  • Equipment Function: Laser Marking & Tube Cutting Machine, mainly for laser marking followed by cutting of PU tubes, air tubes, etc.
  • Designed for marking and fixed-length cutting of round tubes including PU tube, air tube, heat-shrinkable tube, rubber tube, oil tube, coffee tube, medical tube, gas tube and water tube. Adopts crawler feeding for high precision and fast speed.
  • The cutting unit uses utility blade design with smooth cut surface, low blade cost and easy replacement.
  • Stepper motor feeding ensures stable feeding and accurate length. High-precision MCU integrated control circuit, simple operation and stable performance. Color touchscreen display for clear data reading.

Specification
Model RSM-TCM-30LM

Dimensions

L660 × W800 × H1450 mm

Power Supply

220V, 50Hz

Total Power

1500W

Total Weight of Integrated Machine

160KG

Sleeve Pipe Diameter

Max. Support Pipe Diameter: 38mm

Printing Mode

Adjustable font size & stroke width; fixed printing, sequential printing, Excel list sequence printing, etc.

Printable Content
 Custom letters, numbers and characters; support QR codes, barcodes, graphics; import files in TXT, Excel, PLT and other formats
Simultaneous Printing
 1~2 Channels
Capacity Depends on printing content and length

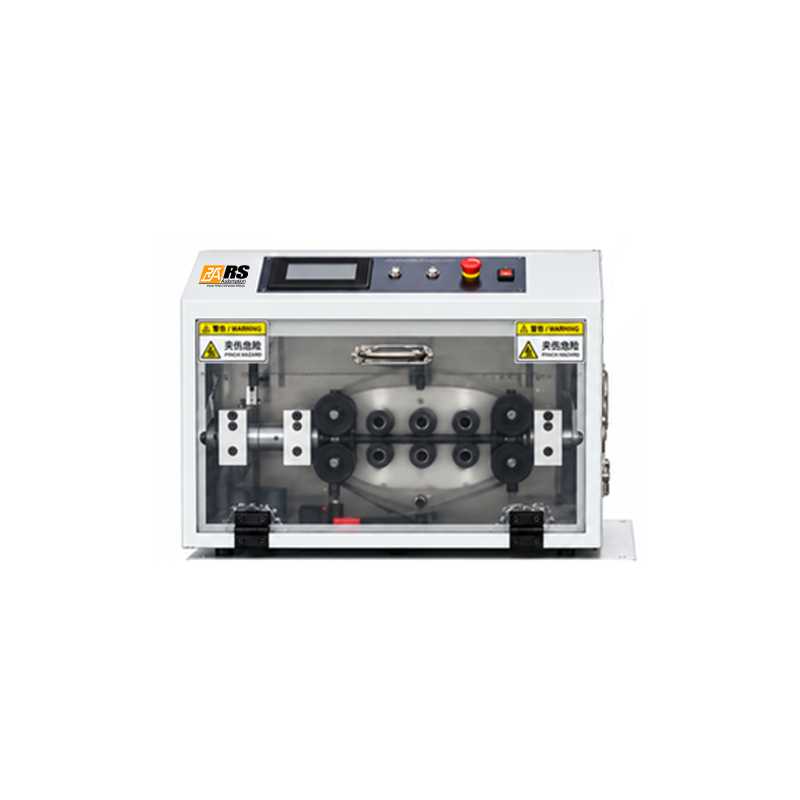

Model Tube Cutting Machine
Power Supply
 AC220V
Power
 560W
Gross Weight
 78kg
Net Weight
 66kg
Cutting Speed
 80–210 cuts/min (depends on cutting length)
Cutting Accuracy
 ±0.2mm (depends on cutting length)
Cutting Length
 0.1–99999.9mm
Cutting Diameter
 0.1–40mm (41–50mm customizable)
Overall Dimension 650×480×420mm (L×W×H)

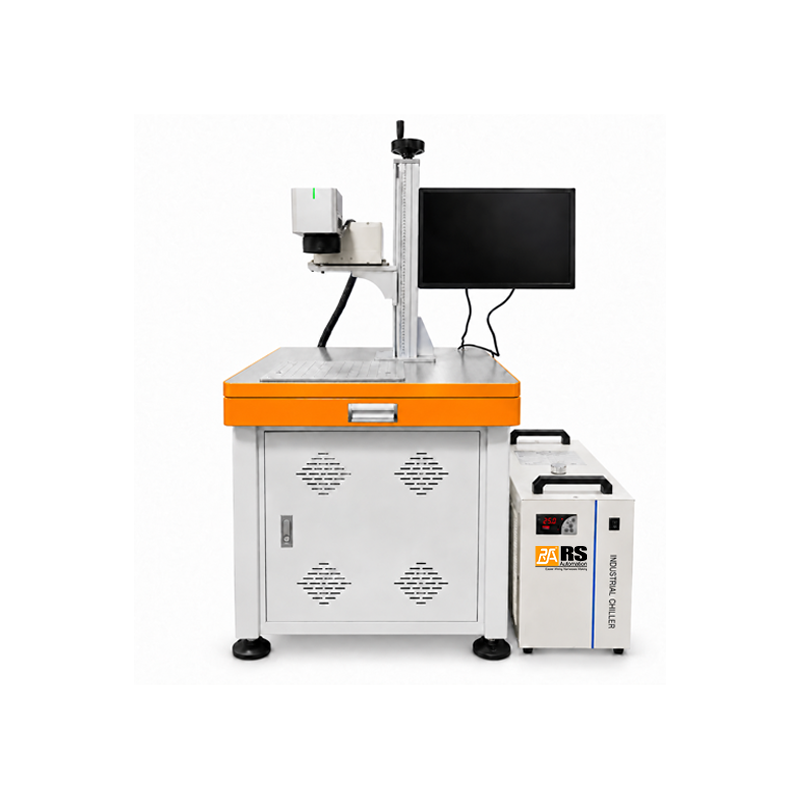

Model Laser Machine
Beam Quality M²
 <0.8
Marking Area (Standard)
 110×110mm
Marking Line Width
 <0.01mm
Marking Speed
 <10000mm/s
Min. Character Size
 0.12mm
Repeat Accuracy
 ±0.001mm
Laser Wavelength
 355nm
Laser Power
 5W

PDF Specification Download

RSM‑TCM-30LM.Pdf
