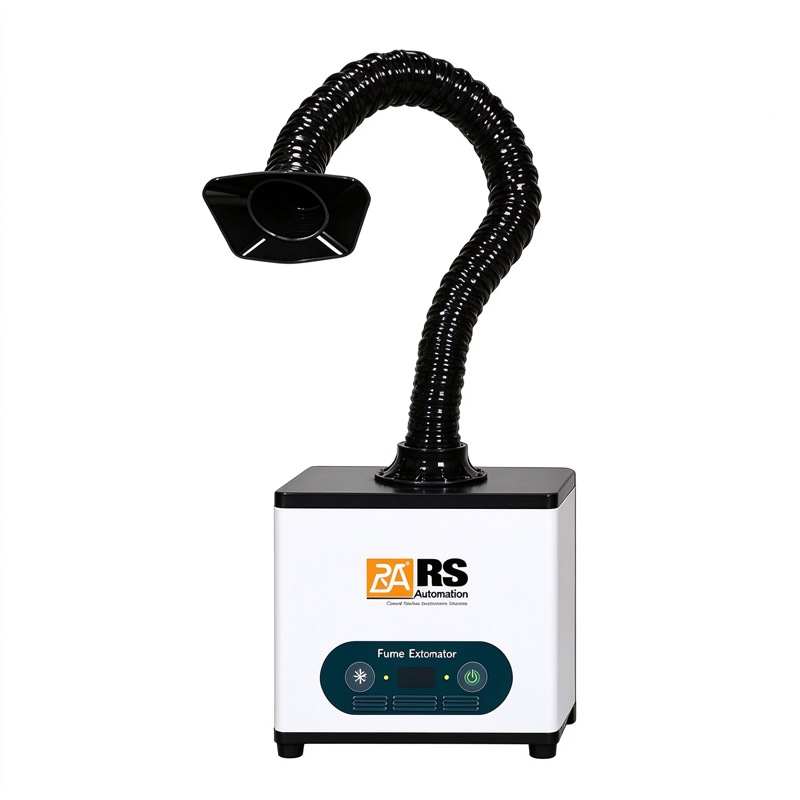

Solder Fume Extracto RSE-FP-240

Description

Feature

Flexible extraction arm for point-of-source fume capture.
Pre-filter and three-in-one high-efficiency filter system.
Captures smoke particles and adsorbs odors.
99.97% filtration efficiency for 0.3 μm particles.
Suitable for soldering, laser marking, laser coding and solder pots.

Compatible Soldering Machines

Pair the RSE-FP-240 fume extractor with these soldering machines for point-of-source fume capture. Explore each model below.

Explore RSE-SSM-200A

Explore RSE-SSM-300A

Specification

Model	RSE-FP-240
Configuration	Desktop, single workstation
Extraction Arm	Flexible hose with silicone hood
Power Supply	AC220V 50Hz
Rated Power	120 W
Filtration Efficiency	99.97% at 0.3 μm
Inlet Diameter	75 mm
Noise Level	≤45 dB
Rated Airflow	260 m³/h
Max. Negative Pressure	2300 Pa

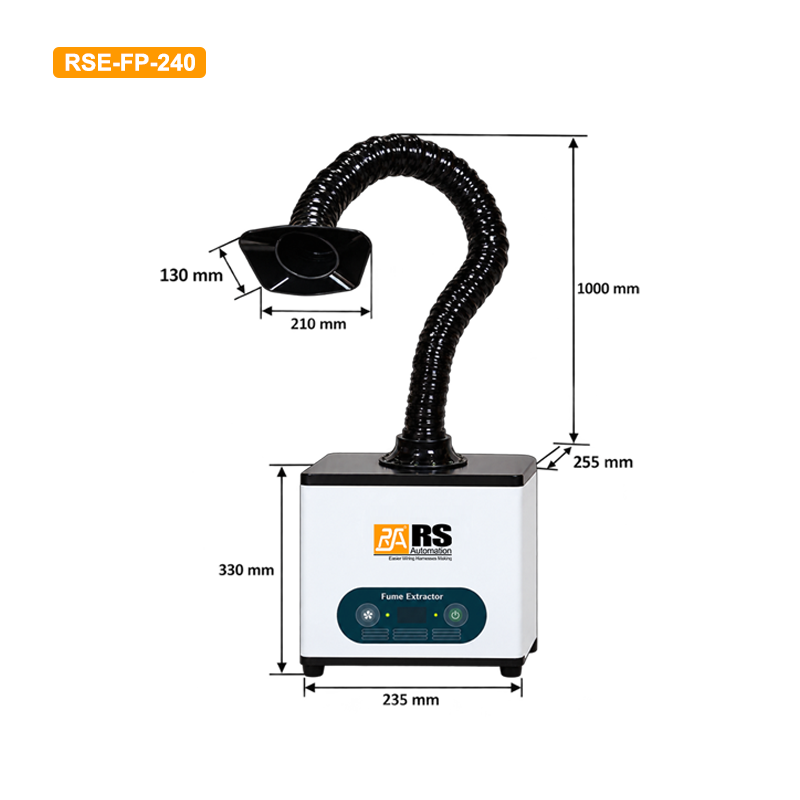

Machine Dimensions	L235 × W255 × H330 mm
Machine Weight	Approx. 8 kg

PDF Specification Download

RSE-EP-240.Pdf

Video
RSE-EP-240.Mp4
