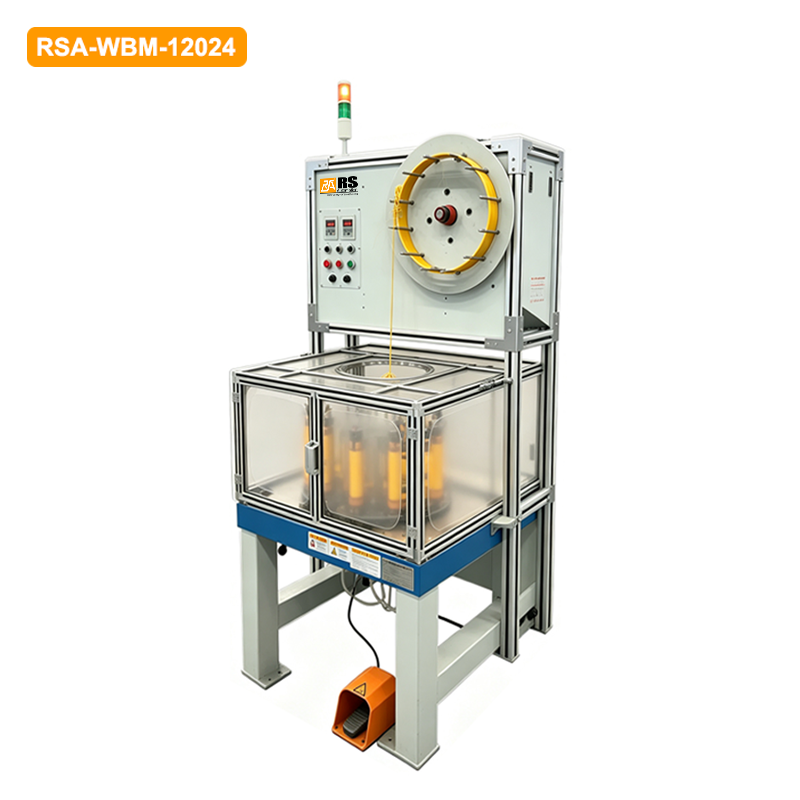

Wire Harnesses Braiding Machine RSA-WBM-12024

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Mainly used for wire harness braiding. Automobile assembly harnesses, special vehicle harnesses, aircraft harnesses,aerospace harnesses, etc.
  • Improved flexibility. Braiding density is adjustable, which can work for different requirements and purpose.
  • User-friendly. The buttons on the control panel are simple and clear, which make sure quick and easy operation.
  • Take-up wheels can be rotated forward or backward to achieve normal and reverse braiding and hide the braiding joint, thus improving the overall beauty of the wire harness.
  • Safety covers are applied to ensure safety while making manual operation more convenient.

Specification
Model RSA-WBM-12024

Head Quantity

1

Plate Diameter

120mm

Plate Speed

≤200 rpm

Braiding Type

Vertical

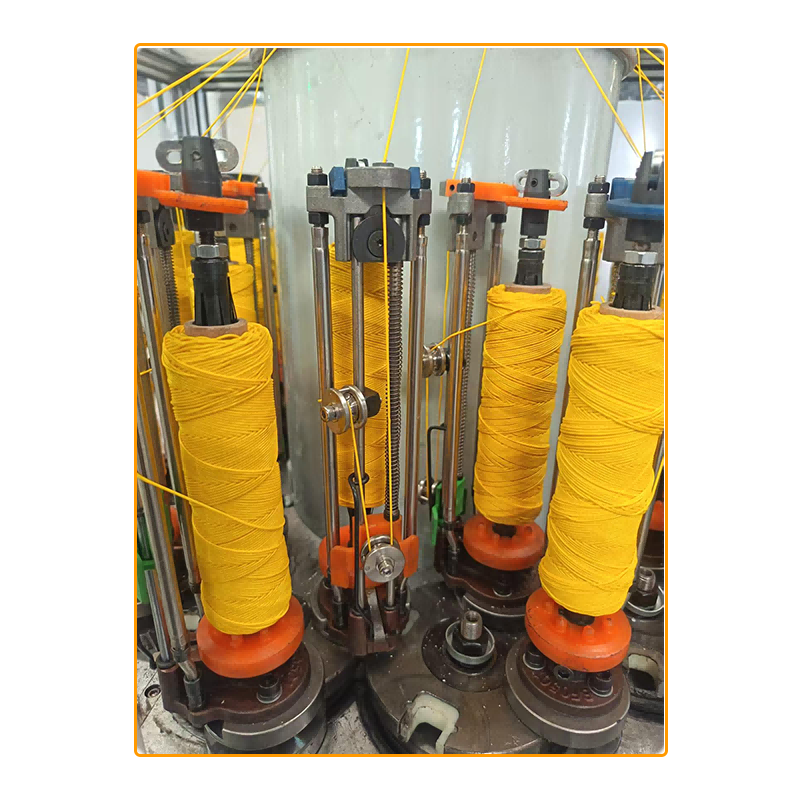

Carrier Count

24

Carrier Spec.

All-metal heavy-duty carrier (Max tension: 5kg)

Bobbin Size
 Ø57*170mm (Direct fit for paper tube yarn)
Braiding Pattern
 1*1 / 2*1
Braiding Density
 Manual / Auto adjustable
Yarn Tension Control
 Interchangeable springs (spare springs included)
Braiding Material
 Metal wire / Harness wrapping yarn, dual compatible
Power Supply
 220V / 380V (Custom voltage for export)
Control
 Inverter drive
Foot Switch
 Included
Top Take-up
 Included
Safety Enclosure
 Included

PDF Specification Download
RSA-WBM-12024.Pdf

Video

RSA-WBM-12024.Mp4
