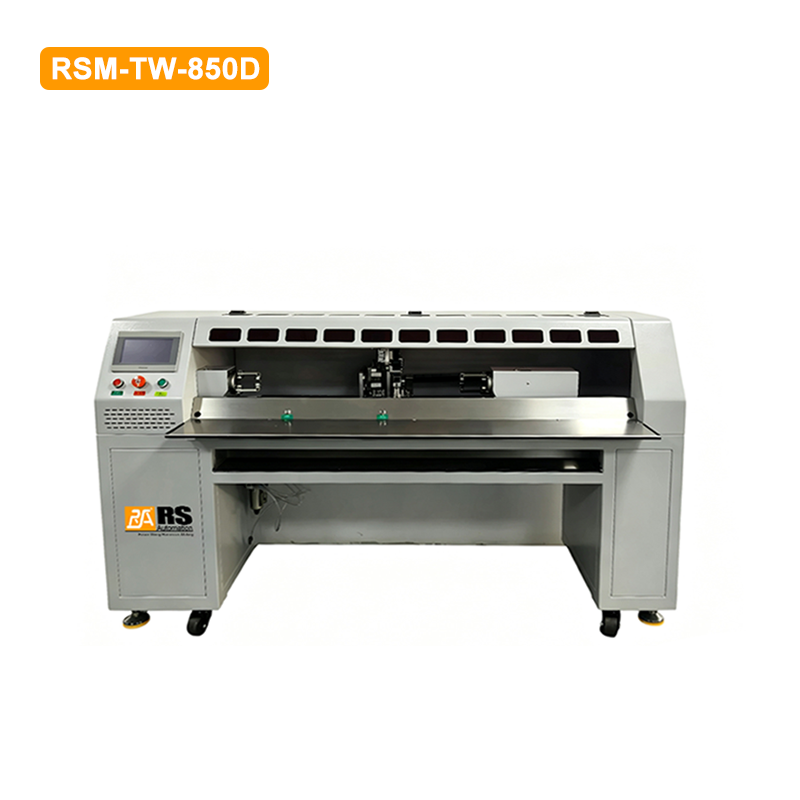

Automatic Tape Wrapping Machine RSM-TW-850D

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Pneumatic wire-clamping for easy operation.
  • Dual-end rotation to avoid wire twisting.
  • Automatic tape attaching, feeding & cutting.
  • High automation, less manual work, lower labor costs.
  • Functions:full-length wrapping and multi-segment wrapping

Specification
Model RSM-TW-850D

Control Mode

Touch Screen + PLC

Effective Wrapping Stroke

Within 1 m

Applicable Wire Diameter

5-15 mm

Tape Inner Core Diameter

Standard Φ38; other sizes Φ32, Φ76 etc. upon advance notice

Main Spindle Speed

0-4500 rpm adjustable

Compatible Tapes

PVC tape, fabric tape, cloth-based tape, high-temperature tape, acetate tape, etc.

Power Supply
 AC220V/DC24V, 50/60Hz; 110V optional
Maximum Tape Outer Diameter
 ≤140 mm
Machine Travel Speed
 1-25-gear adjustable
Machine Dimensions (L×W×H)
 1800×700×1050 mm
Machine Gross Weight
 300 kg
Wooden Case Dimension
 1830×730×1090 mm, Case Gross Weight: 348 kg
Optional Accessories
 Paper-collecting device, safety light curtain

PDF Specification Download

RSM-TW-850D.Pdf


Video
RSM-TW-850D.Mp4
