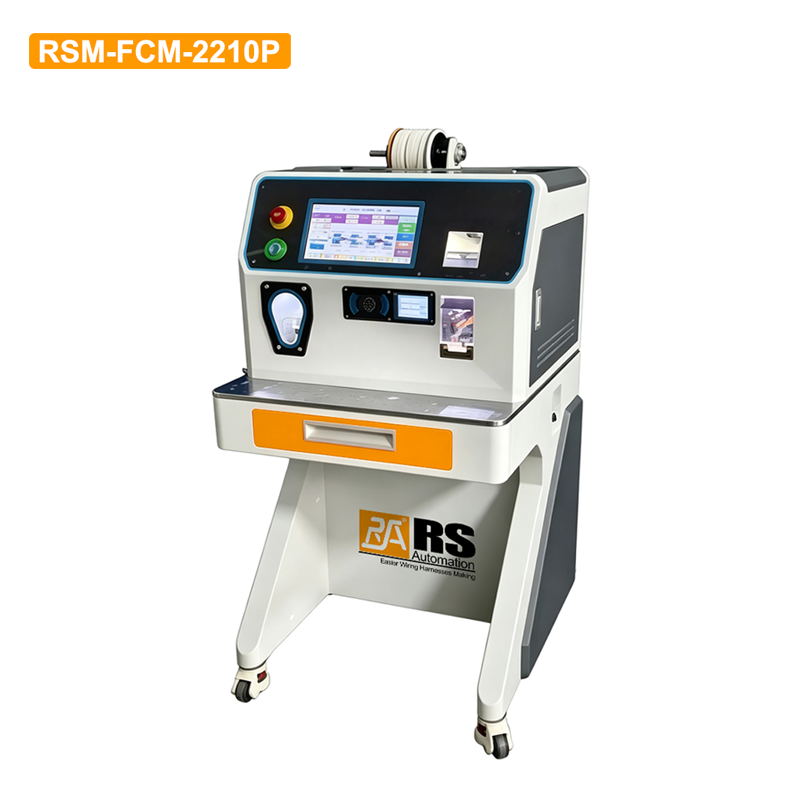

Ferrule Terminal Servo Crimping Machine with Marking-Tube Threading RSM-FCM-2210P

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature

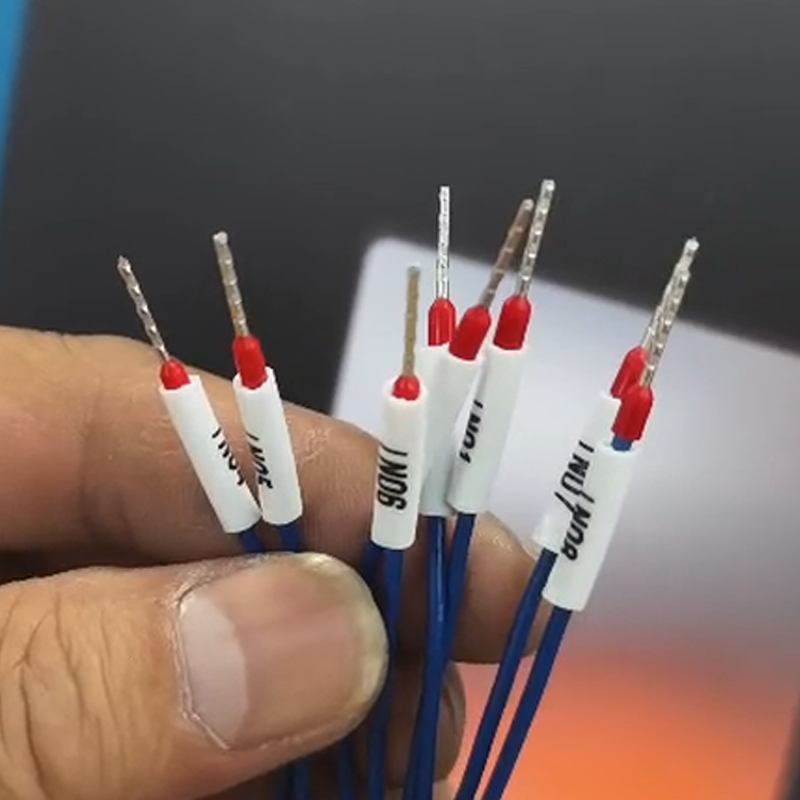

  • Clear hot-transfer wire markers.
  • No mould change required for different-size terminals.
  • Strip, twist and feed wire into terminals without reversed strands.
  • Servo-motor crimping automatically adapts to various terminals.
  • Operated via HMI human-machine interface.
  • Auto poke-yoke activation or foot-switch start-up available.
  • Multiple monitorable alarm prompts.

Specification
Model RSM-FCM-2210P

Production Rate

3.2 sec / wire (cycle time)

Applicable Wires

BVR, RV: 0.5-6.0mm²; 0.3mm² upon custom request.
Min. wire-tube distance: 60mm + sleeve length

Terminal Range

0.3-6mm²;Insulator ≤11mm, Conductor ≤20mm

Stripping Length

6-30mm (rotary / parallel stripping optional)

Terminal Feeding

Vibratory bowl feeder, easy adjustment for general use

Crimp Profile

Quadrilateral (square-like); Hexagon / trapezoid on custom machine

Crimping Force
 1.5T servo crimping, crimp height adjustable
Marking Tube
 PVC sleeve 0.5-6mm², print length 10-40mm
Heat-shrink tube to be confirmed
Printing Method
 Ribbon thermal transfer, 110m ribbon roll
Print Function
 On-screen input & SD-card Excel / CSV import.
Bilingual print; 100 entries per job, max.300 jobs stored
Threading Reminder
 Voice alert + small-screen prompt (non-detection function)
Product Change
 Manual fixture replacement & vibratory bowl adjustment
Detection Items
 Ribbon, marker tube, wire ejection, terminal presence & other runtime checks
Operation Mode
 Auto-trigger by wire feeding; foot-switch & manual mode available
Control System
 10-inch HMI, electronic + pneumatic control
Power Supply
 AC220V/50Hz 10A (single-phase); Internal: DC24V, DC30V, AC30V.
Total power:1500W; AC110V optional
Working Air Pressure
 0.5-0.6MPa (use clean, dry & stable air source)
Ambient Temp.
 0-35℃
Net Weight
 140KG
Dimensions
 W620 × L660 × H1200 mm

PDF Specification Download

RSM-FCM-2210P.Pdf


Video
RSM-FCM-2210P.Mp4
