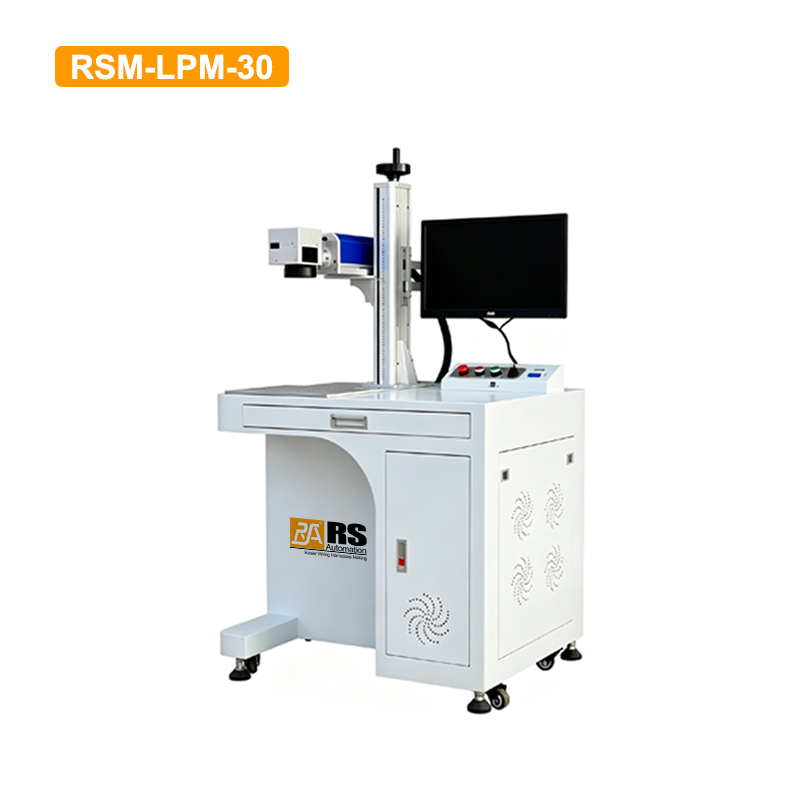

Fiber Laser Marking Machine RSM-LPM-30

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Industry Applications
  • IT components, medical devices, electronic components;
  • Batteries, kitchenware, auto parts;
  • Precision machinery, hardware, instruments & meters;
  • Jewelry, eyewear, watches, crafts and gifts.
Feature
  • Adopts 3rd-generation fiber solid-state laser with fiber-coupled pump source.
  • High electro-optical conversion efficiency up to 80% with low energy consumption.
  • Superior beam quality for high-precision and uniform marking.
  • Long laser service life, stable operation and low maintenance.

Specification
Model RSM-LPM-30

Laser Type

Fiber Laser

Laser Wavelength

1064nm

Laser Power

30W

Frequency Range

30-90KHz

Pulse Width

220ns

Marking Speed

≤2500mm/s

Minimum Line Width
 0.03mm
Minimum Character
 0.2×0.2mm
Repetition Accuracy
 0.01mm
Marking Area
 110×110mm (Optional)
Cooling Mode
 Air-cooled
Total Power Consumption
 800W
Working Voltage
 220V/50Hz

PDF Specification Download

RSE-LPM-30.Pdf


Video
RSE-LPM-30.Mp4
