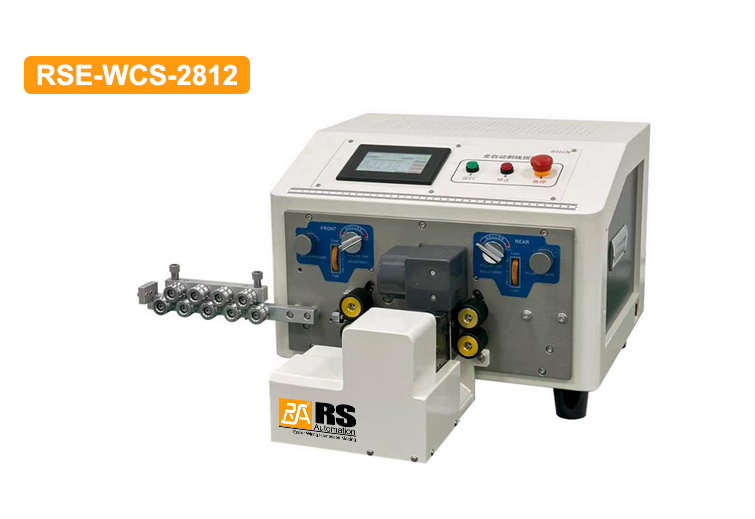

Full-automatic Wire Stripping and Twisting Machine RSE-WCS-2812

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • The machine adopts rubbing-bar twisting design for tighter wire twisting and broader wire compatibility.
  • Fully touch-screen CNC digital adjustment; digitalized operation, simple and user-friendly.
  • Unique rounded-precision appearance design, compact and exquisite for easy placement.
  • Auto wire feeding & discharging, timer start, and inching adjustment switch.
  • One-key correction function for wire length error.

Specification
Model RSE-WCS-2812

Power Supply

AC220V 50/60HZ

Machine Dimension

L470mm*W780mm*H350mm

Machine Weight

60kg

Total Power

880W

Rated Power

400W

Auxiliary Functions

Automatic wire feeding & discharging, timed start, inching adjustment

Display Mode
 4.3-inch color touch screen
Wire Core Cross-section
 0.1-4mm², AWG28#-12#
Cutting Length
 0.1-99999.9mm
Front Stripping Length
 0.1-30mm
Rear Stripping Length
 0.1-30mm
Mid-stripping Segments
 16 segments (customizable)
Blade Material
 Imported Tungsten Steel / High-speed Steel
Stripping Accuracy
 0.01mm, driven by silent hybrid stepper motor
Hourly Production Capacity
 2000-4500 pieces/hour (wire length: 50-1000mm)
Program Storage
 No. 00-99; support one-key copy, one-key reading, custom number and name editing

PDF Specification Download

RSE-WCS-2812.Pdf


Video
RSE-WCS-2812.Mp4
