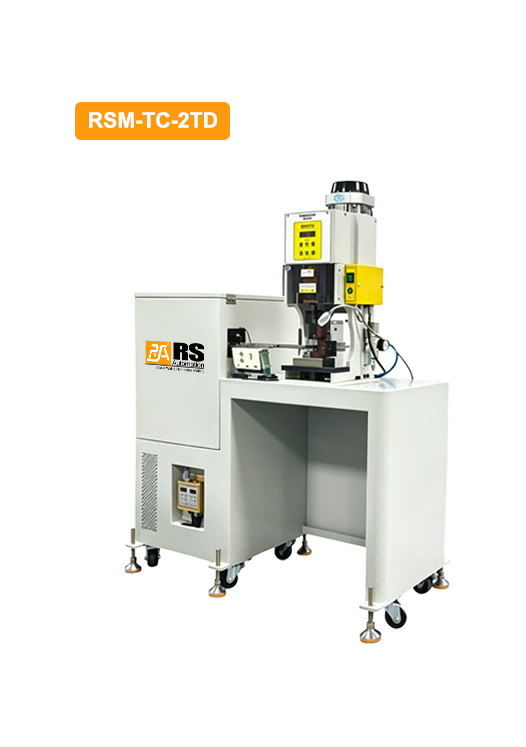

Vibratory Feeder Terminal Crimping Machine RSM-TC-2TD

Description

Feature

Adopts modern frequency-converter control, upgraded from conventional silent terminal crimping machine with vibratory bowl feeder.
Combines strengths of traditional terminal machine and vibratory feeding system: high efficiency & low error rate.
One-unit setup completes both feeding and terminal crimping operations.
Built-in auxiliary detection module stops vibratory bowl when materials are sufficient.
Reduces energy consumption and operating noise.

Specification

Model	RSE-TC-2TD
Power Supply	AC220V 50/60HZ
Motor Power	750 W

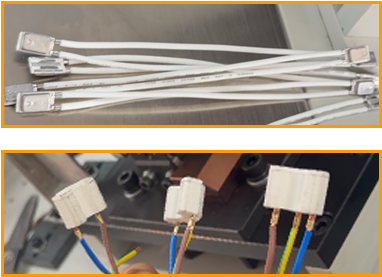

Functions	Automatic feeding & crimping for single‑piece terminals
Production Capacity	Approx. 4000 pcs/hour (subject to operator proficiency)
Crimping Range	0.5‑6mm²
Crimping Stroke	30 mm
Crimping Accuracy	±0.03
Crimping Force	20 KN
Machine Dimensions	500×860×1360mm
Machine Weight	Approx. 130 kg

PDF Specification Download

Video
RSE-TC-2TD.Mp4
