Cable Cutting & Stripping Machine RSM-WCS-6400R

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Optional: MES system, IoT system, fixed-point inkjet marking, mid-strip function, external auxiliary equipment alarm;
  • User-friendly system with intuitive 7" color touchscreen operation;
  • Modular interfaces for easy connection of accessories and peripheral devices;
  • Modular design, future-upgradable;
  • Wide range of optional accessories for customized systems; non-standard customization available for special cable processing.

Specification

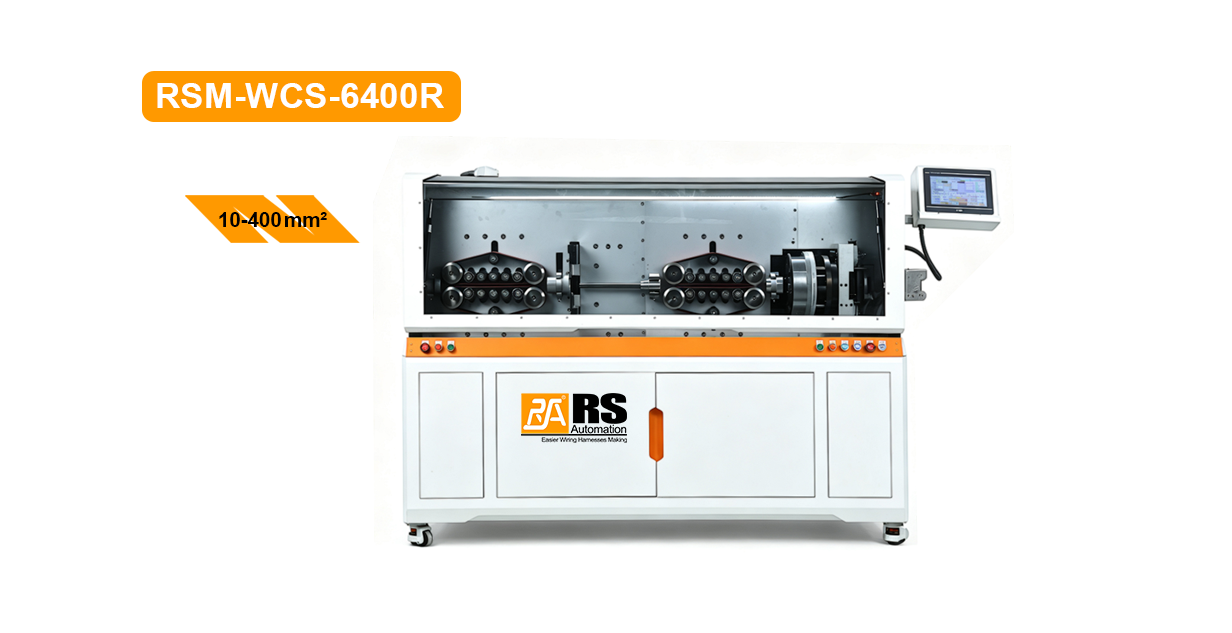

Model RSM-WCS-6400R

Display

10-inch HMI

Functions

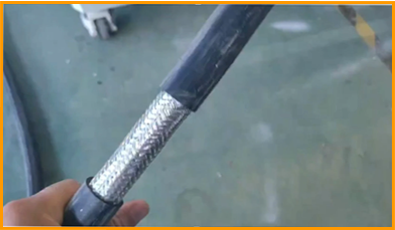

1.Applicable for large-size wires such as power cables, coaxial cables, multi-core, multi-layer, shielded wires and new energy EV charging cables.
2.Adopts rotary cutting structure to cut and strip various cables without blade replacement, and supports 100 groups of processing recipe storage.

Wire Types

Single-core, multi-core, power cable, multi-layer cable, shielded cable, electric wire

Processing Range

10-400 mm²

Cutting Length

10-400 mm²

Cutting Tolerance

≤0.002×L (L = cutting length)

Stripping Length
 Front strip: 1-1000 mm (wire head)
Rear strip: 1-300 mm (wire tail)
Max Conduit Diameter
 Φ42
Lifting Roller
 Servo-motor driven
Conduit Swing
 Pneumatic cylinder driven

Cutting Blade Material

Premium imported high-speed steel

Productivity 600-1000 PCS/h (subject to wire length & cross-section)
Drive System
 Wire feeding: 32-roller, independent servo for each group
Tool holder: Dual servo + dual lead screw(Full-servo configuration for the whole machine)
Wire Feeding Belt-type feeding, no indentation or scratch on cables. With stripping pressure-adjustment function
Rotary Stripping Feed
 Ground lead screw
Rotary Stripping Blade Material
 High-speed steel / Tungsten steel (optional)
Rotary Stripping Blade Qty 2 pcs
Rotary Stripping Blade Drive
 Feed: Servo; Rotation: Servo
Auxiliary Rotary Stripping Clamp
 Servo + ground lead screw
Pressure-roller Height Adjustment
 Digital adjustment
Power Supply
 AC220V 50/60Hz; Optional 110V 50/60Hz
Power Rating
 15.5 Kw
Air Source
 0.5-0.8 Mpa clean compressed air
Dimension (L×W×H)
 1720×700×1287 mm
Net Weight
 900 KG

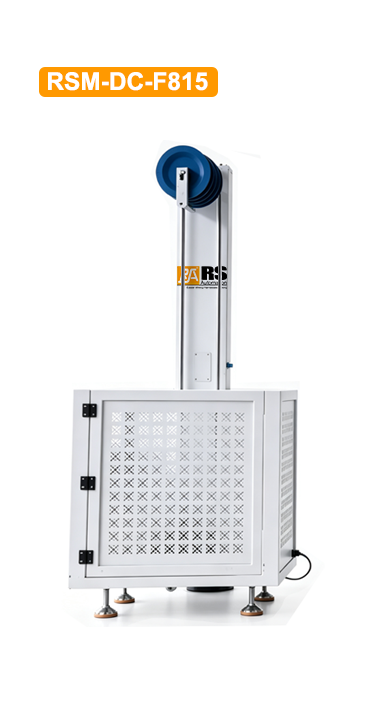

Model RSM-DC-F815
Wire Type
 Hard Wire
Wire-storage Type
 Swing-arm Type
Storage Pulley
 1-upper 1-lower; 2-upper 2-lower optional
Applicable Copper Wire Dia.
 0.01-3 mm
Max. Tensile Load
 500 N
Storage Pulley Outer Dia.
 300 mm
Storage Pulley Width
 45 mm
Wire-storage Stroke
 1200 mm
Position Sensor
 Cable-pull Encoder
Counterweight Type
 Pressure-regulating Cylinder
Connector Type
 Aviation Connector
Air Pressure
 P0.5 MPa
Protection Type
 Mesh + Acrylic
Machine Dimension
 222×38×190 cm
Net Weight
 160 kg
Packing Dimension
 248×60×207 cm
Gross Weight
 303 kg

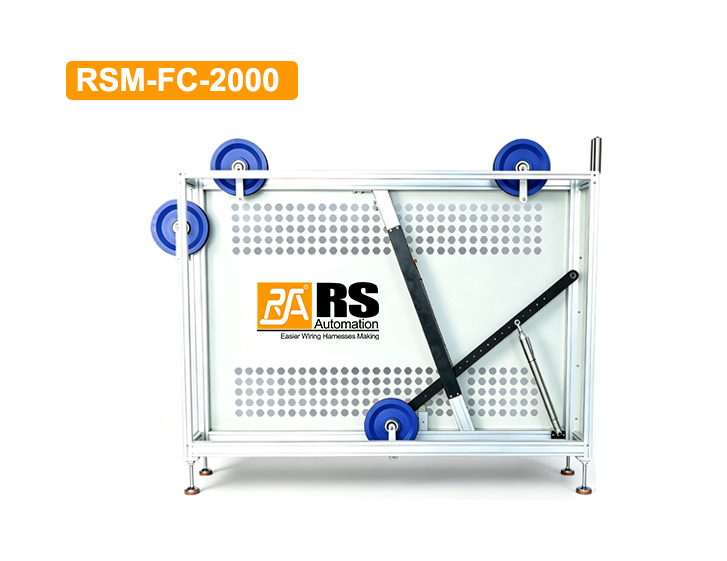

Model RSM-FC-2000
Application
 Spool-mounted Wire
Max. Load Capacity
 1500 Kg
Reel Outer Diameter
 600-1500 mm
Bore Diameter (Reel Inner Diameter)
 0-140 mm
Reel Height (Reel Width)
 900 mm
Motor Power
 3 KW
Drive Mode
 3-Phase Motor + Reducer
Rated Speed
 1450 rpm
Max. Speed
 2200 rpm
Installation Method
 Double-clamping Top-support Type
Reel Type
 		Wood / Plastic / Metal Reel
Mounting Style
 Clamping & Top-support
Speed Control
 Adaptive Stepless Speed Regulation
Max. Wire Diameter
 40 mm
Weight
 1100 Kg

PDF Specification Download

RSM‑WCS‑6400R.Pdf
