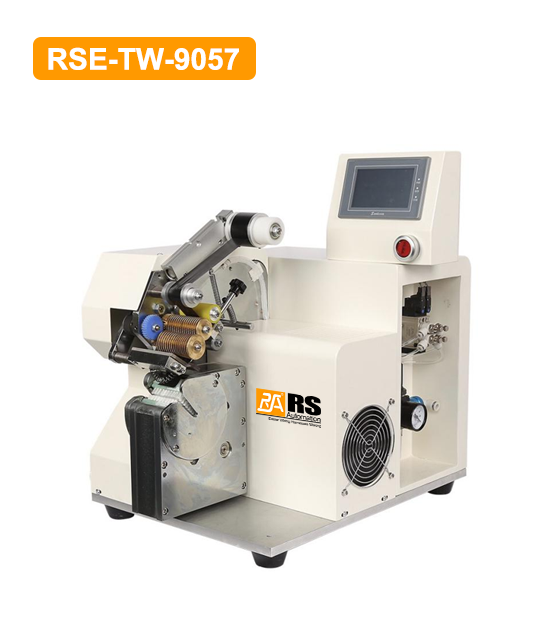

Wire Harness Spot Taping Machine RSE-TW-9057

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature

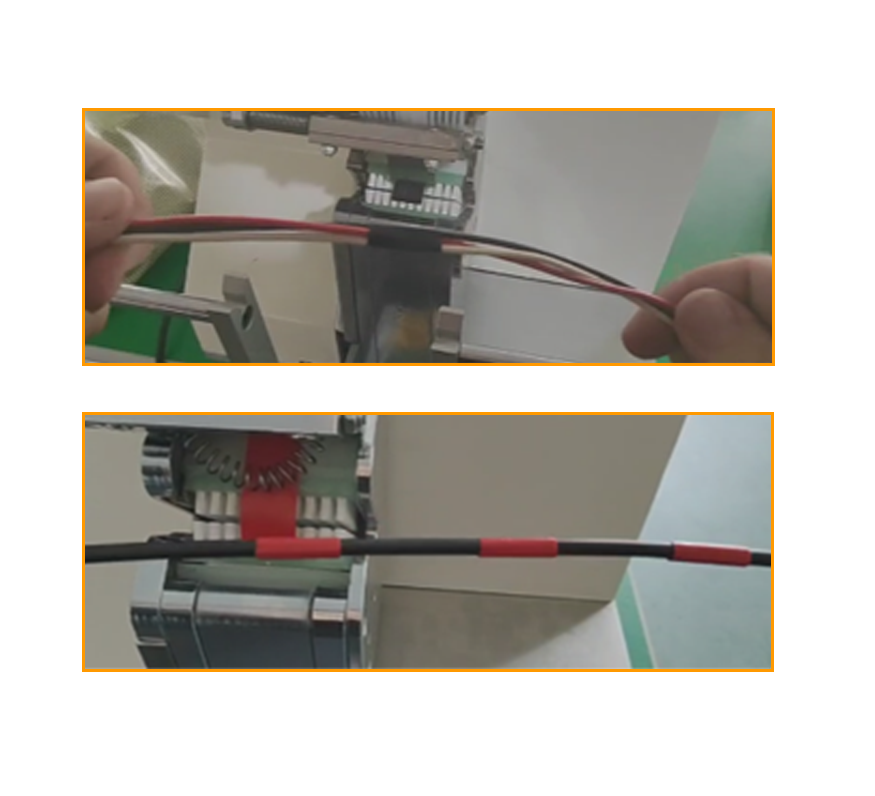

  • Suitable for harness taping after intermediate-joint crimping and regular wire bundling operations.
  • Equipped with taping structure of 90 mm roller diameter and 57 mm brush width, supporting a wide range of tape widths and harness diameters.
  • Adopts copper-wheel tape-feeding mechanism for stable and reliable performance.
  • Simple and user-friendly operation, effectively reducing operators’ labor intensity.

Specification
Model RSE-TW-9057

Special Configurations

Two brushes (-A); One brush & one plate (-B); Two plates (-C); Custom (-F); Cutter (-J)Working Ambient Temp.

Working Ambient Temp.

0~40℃

Working Air Pressure

0.4 MPa-0.6 MPa

Machine Dimension

L 450 mm × W 350 mm × H 500 mm

Machine Weight

48 Kg

Main Materials

45# steel, AL6061, brass and others

Power Supply
 Single-phase, AC220V, 50 Hz
Power Rating
 200 W
Applicable Workpiece
 Single wire or multi-wire harness after intermediate-joint crimping
Working Efficiency
 24 pcs/min

Tape Materials

PVC, PET, masking, cloth-based, acetate-cloth, flannel tapes, etc.

Taping Position Accuracy Within ±3
Tape Overlap Tolerance
 Within ±2 (varies slightly with tape type)
Workpiece Total Length
 ≥100 mm
Tape Width Range
 10 mm-50 mm
Bundle Diameter Range
 4.5 mm-14 mm (overall workpiece diameter)
Tape Cutting Length
 50-55 mm (digitally adjustable)
Distance To Workpiece End
 Tape edge ≥10 mm from workpiece end
Optional Accessories
 Automatic separator-paper take-up unit; Auxiliary wire-feeding positioning device; Contact switch
