Cable Cutting & Stripping Machine RSM-WCS-6120

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Optional configurations: MES system, IoT system, fixed-position marking, mid-strip function, external auxiliary device alarm.
  • Intuitive operation via 7-inch color touch-screen with user-friendly interface.
  • Modular interfaces for easy connection to accessories and peripheral equipment.
  • Modular design supports future upgrades.
  • Various optional accessories and customizable systems; non-standard customization for special wire processing.

Specification

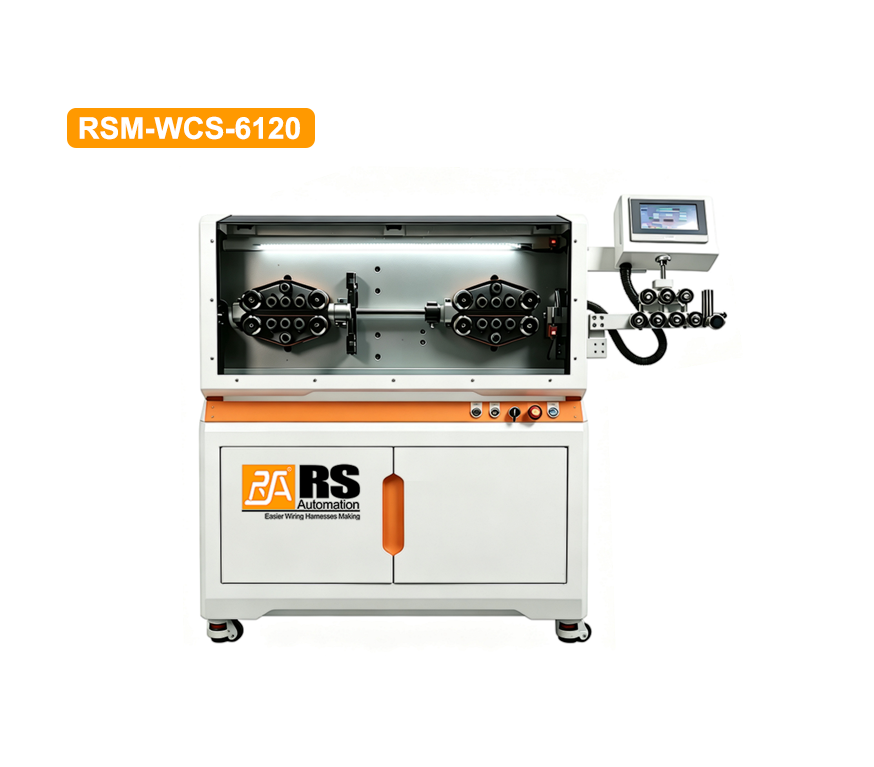

Model RSM-WCS-6120

Display

7-inch HMI

Function

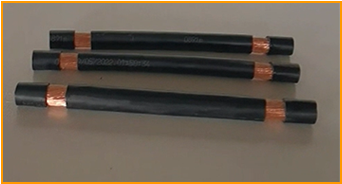

Fully automatic fixed-length cutting and stripping for single-core, multi-core and shielded cables

Wire Types

Single-core wire, multi-core cable, shielded cable, PVC wire, etc.

Processing Range

2.5–120 mm²

Cutting Length

1 mm–999999.99 mm

Cutting Tolerance

≤0.002×L (L = cutting length)

Stripping Length
 Front full-strip: 1–300 mm; Front half-strip: 1–1000 mm
Rear full-strip: 1–150 mm; Rear half-strip: 1–500 mm
Max Conduit Diameter
 Φ27 mm
Lifting Wheel
 Stepper motor driven
Conduit Swing
 Cylinder driven

Cutting Tool

Premium imported high-speed steel

Productivity 2000 PCS/h (depends on wire length and cross-section)
Drive System
 24-wheel drive (stepper motor for feeding, servo motor for cutter head);☑️servo feeding optional
Feeding Method  Belt feeding with no cable indentation or scratches, with adjustable stripping pressure
Pressure Wheel Height
 Digital adjustment
Power Supply
 AC220V 50/60Hz;☑️110V 50/60Hz optional
Air Source 0.5–0.8 MPa clean compressed air
Dimensions (L×W×H)
 1020×590×1140 mm
Net Weight
 260 kg

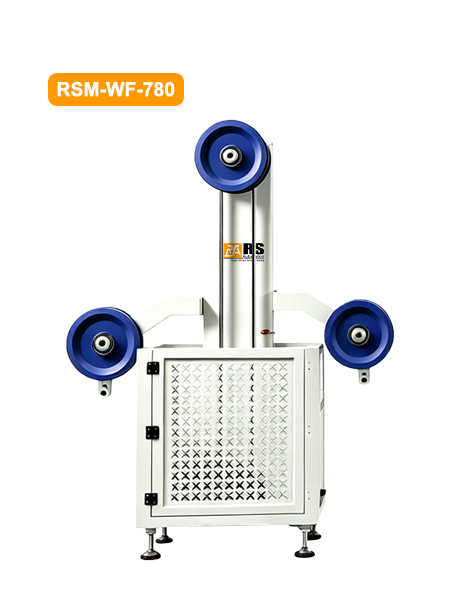

Model
 RSM-WF-780
Application
 Reel-mounted wire
Max. Load Capacity
 800 kg
Reel Size(OD×ID×Width)
 300-800 × 60-140 × 300-700 mm
Max. Wire Diameter
 30 mm
Motor Power
 2.2 kW
Drive Type
 3-phase motor + reducer
Speed Control
 Adaptive stepless speed regulation
Max. Speed
 2200 rpm
Protection
 Fully-enclosed
Overall Dimension(L×W×H)
 1600×1400×1200 mm
Net Weight / Gross Weight
 400 kg / 500 kg

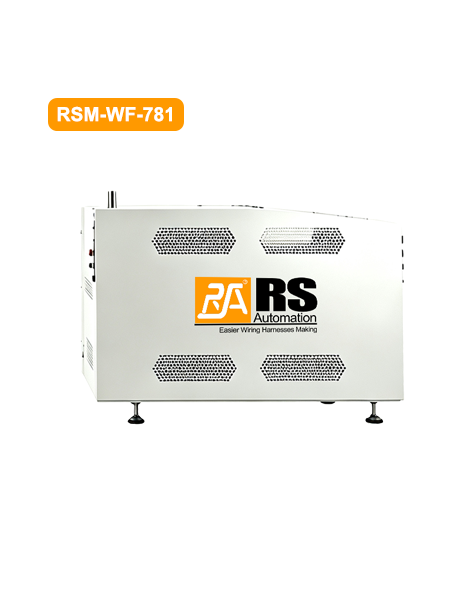

Model
 RSM-WF-781
Tension Wheel
 Upper fixed group (4 pcs) + lower movable group (3 pcs); Ø200 mm
Dimensions(H×L×W)
 180 cm × 150 cm × 55 cm
Weight
 200 kg

PDF Specification Download

RSM-WCS-6120.Pdf
