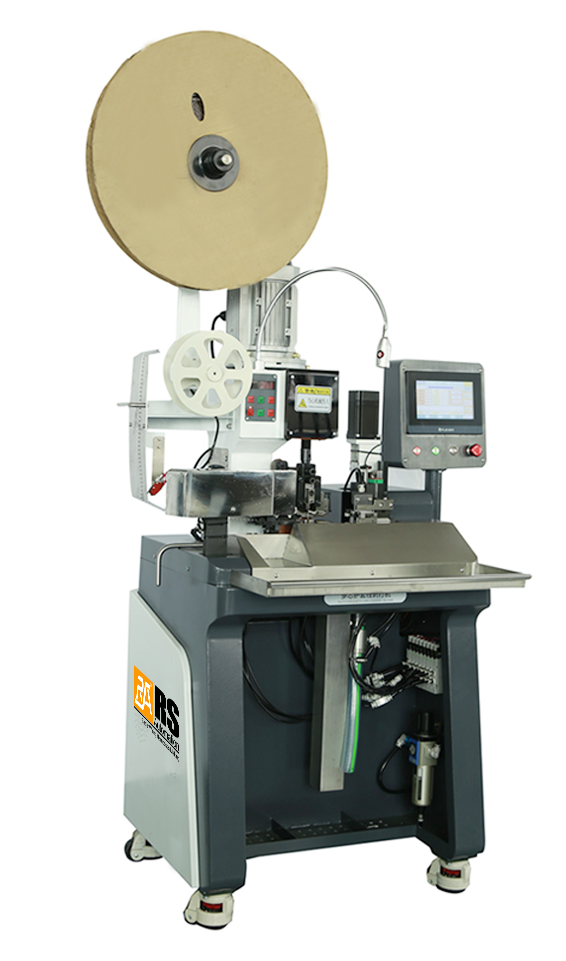

Multi-core wire stripping and crimping machine RSM-MSC-0540

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • This machine is mainly used for cutting, stripping and continuous crimping processing of sheathed wires.
  • Servo motors and lead screw transmission are adopted for stripping and crimping displacement to improve precision and guarantee high-quality production requirements.
  • The machine is equipped with a Weinview color touch screen, featuring a concise and intuitive interface for convenient parameter adjustment.

Specification
Model RSM-MSC-0540

Applicable Wire Gauge

¢0.6mm-¢2.5mm

Applicable Wires

 AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon and other wires

Max. Number of Processed Conductors

12 Conductors

Sheath Stripping Range

Min. core length: 13.5 mm; Min. length for 5–15 conductors: 25 mm

Stripping Length

0.5-10mm

Stripping Length Tolerance

0.05-0.1mm

Crimping Capacity
 2T
Machine Power
 1500W
Power Supply
 200V-240V 50/60Hz
Air Supply
 0.4-0.6MPa

Machine Dimensions

L850xW550xH1350mm

Weight 150KG

PDF Specification Download

RSM-MSC-0540.Pdf
