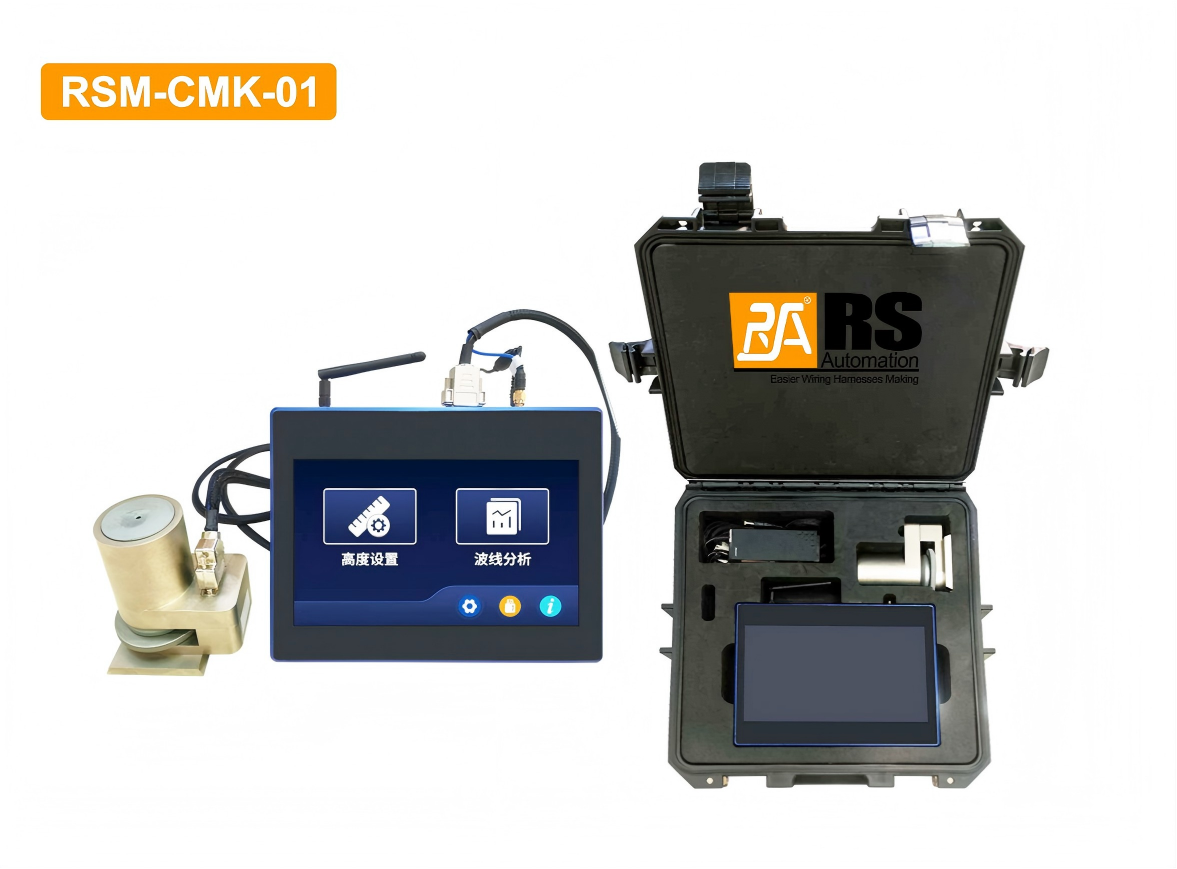

CMK Detector RSM-CMK-01

Description

Feature

Crimp Height Measurement Precision: 0.001 mm.
Pressure Repeatability: 0.5% .
Auto-generate CMK inspection reports of terminal machine.
Reports can be uploaded by scanning the QR code, and access is available through mobile QR code scanning.
Elegant interface, simple operation, wizard-guided workflow.

Specification

Model	RSM-CMK-01
Main Unit
Dimensions	W: 25 cm, H: 22 cm, D: 6 cm
Weight	2.35 KG
Display	10.1-inch
Power Supply	12 V
Load Module Height
Closed Height	119.7 mm (without spacer block), 135.78 mm (with spacer block)
Measuring Range	±0.5 mm
Resolution	0.001 mm
Force
Calibration Range	2940 N – 8820 N (300 Kg – 900 Kg)
Measuring Range	2940 N – 8820 N (300 Kg – 900 Kg)
Resolution	1.3 N (0.1 Kg)

PDF Specification Download
