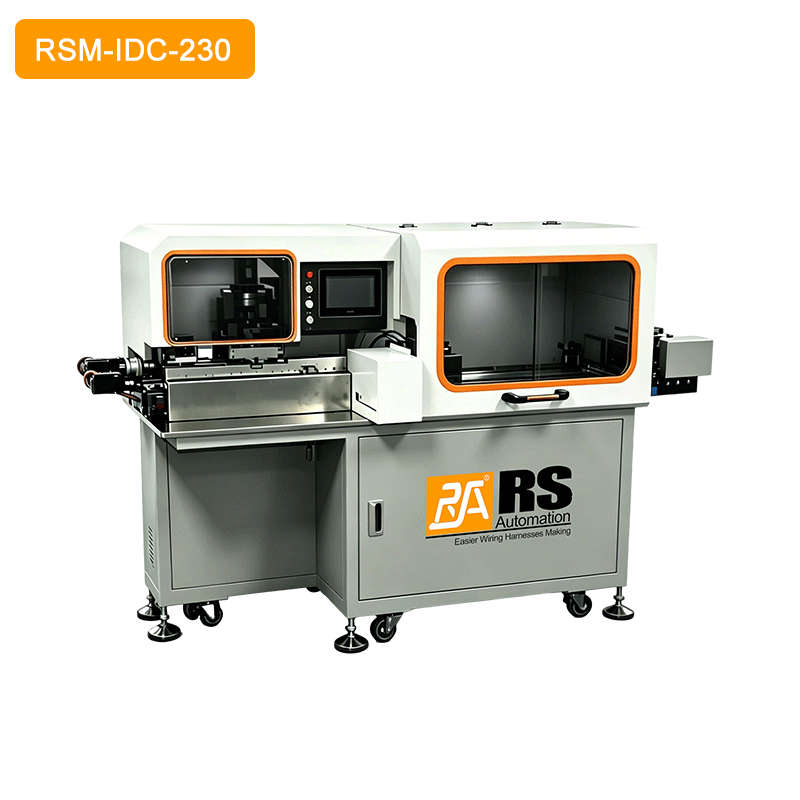

Semi-Automatic IDC Machine RSM-IDC-230

0.00
0.00
Quantity:
(Inventory: 0)
Buy now
Add to cart

Description
Feature
  • Direct insulation piercing & conductor crimp by IDC terminals, no stripping required for higher productivity.
  • Manual feeding, automatic crimping; balances flexibility and throughput, ideal for small & medium batch production.
  • Modular dies, quick fixture change, fits multi-PIN cables & various wire sizes.
  • PLC touch control for adjustable force & stroke, uniform crimp and reliable harness conduction.
  • Enclosed see-through guard & dual-hand switch; casters + leveling feet for mobility & stationary use.

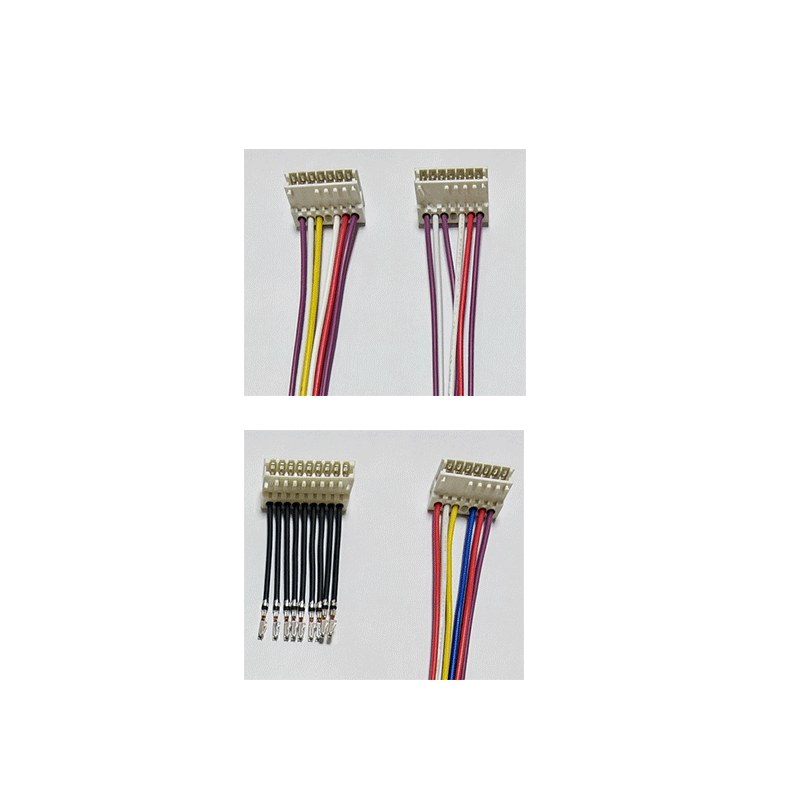

  • User-friendly operation with easy setup and simple maintenance, suitable for automotive, home appliance and electronic wire harness fabrication.
Specification
Model RSM-IDC-230
Function
  Insulation Piercing & Crimping
Wire OD
 Ø1.5mm
Housing Spec.
 3P～11P（3Pin～11Pin）
Pitch
 2.54mm
Processing Housing
 2PIN-30PIN
Detection
 Wire In-place Check, Air Pressure Monitoring
Voltage
 AC 220V 50/60HZ（Single‑phase）
Power
 3000W
Air
 		0.40～0.78MPa
Weight
 250kg
Dimension
  L1340×W670×H1230 mm (excluding protrusions)

PDF Specification Download
RSM-IDC-230.Pdf
 Video
RSM-IDC-230.Mp4
RSM-IDC-230(1).Mp4
