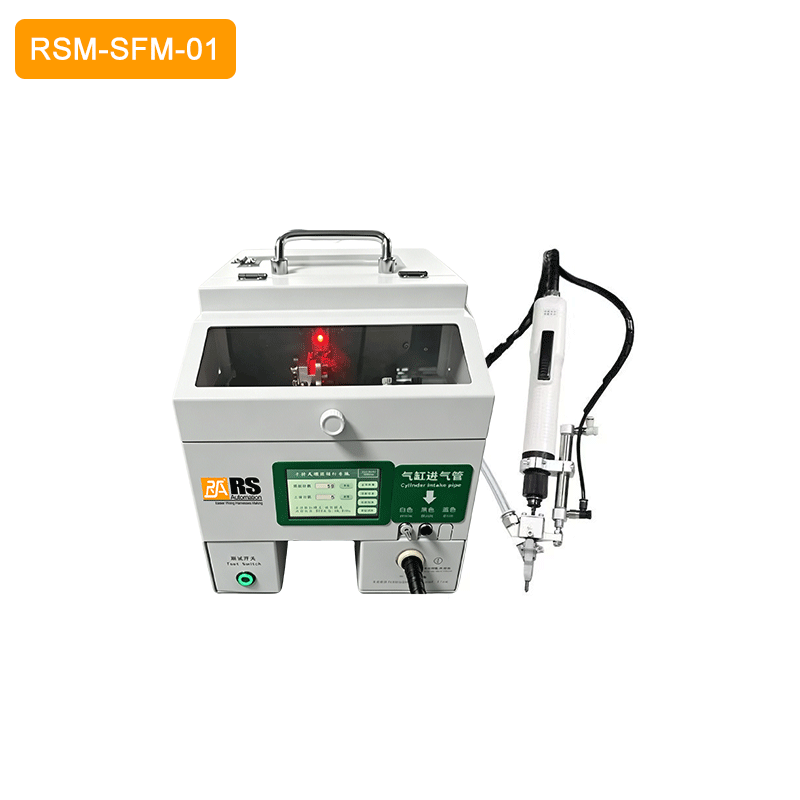

Push-pull Handheld Automatic Screw Fastening Machine RSM-SFM-01

Description

Feature

Worm gear feeding, small size, low noise & light weight. Space-saving for bench placement; built-in handles for easy moving.
Automatic screw sorting and feeding, with defective screws automatically screened out. It features automatic material replenishment and an alarm function when material runs out.
Torque detection controls feeding: one screw per fastening. Intelligent feed avoids double delivery.
No feeding in case of screw slipping. If the torque fails to reach the set value during fastening, the machine stops screw feeding to prevent bit jamming.
High stability with minimal jamming. Even if jamming occurs due to defective parts, it can be cleared within seconds by ordinary operators.
High efficiency, 0.8 seconds per screw. No manual picking, just align and press.
Cuts 1-2 workers for screw driving. Semi-auto operation reduces labor and boosts efficiency.
Premium treated hardware & original imported electronics for reliable performance.

Specification

Model	RSM-SFM-01
Control System	Self-developed control system
Feeding Distance	1-3 m
Signal Type	Built-in detection signal of electric screwdriver
Screw slip detection	Standard
Alarm	Sound & light alarm
Loading Mode	Automatic worm gear feeding
Feeding Mode	Air-blowing type
Feeding speed	0.6-1 s/pc
Fastening speed	0.7-1 s/pc
Screw capacity	~2000 pcs (subject to screw size)
Air	0.5-0.6 MPa
Noise	＜60 dB
Power	60W
Screwdriver	Brushless high-speed self-control type
Voltage	AC220
Operating Voltage	Main Board DC24V
Weight	15KG
Dimension	420mm×235mm×285mm

Applicable Screw Types

Screw Sizes	M1.4	M1.7	M2.0	M2.3	M2.6	M3.0	M3.5	M4.0	Other Sizes
M	1.3-1.5	1.6-1.8	1.9-2.1	2.2~2.4	2.5~2.7	2.9~3.2	3.4~3.6	3.4~3.6	Customizable
D	＜2.8 mm	＜3.2mm	＜3.6 mm	＜4.0 mm	＜4.3 mm	＜5.3 mm	＜6.0 mm	＜6.8mm	Customizable
L	＜16 mm	＜16 mm	＜16 mm	＜16 mm	＜16 mm	＜16 mm	＜16 mm	＜16 mm	Customizable
L/D	＞1.5 mm	＞1.5 mm	＞1.5 mm	＞1.5 mm	＞1.5 mm	＞1.5 mm	＞1.5 mm	＞1.5 mm	Customizable

Application Range:
1.Applicable screw head types: Slotted, Phillips, Tri-wing, Torx, Hex socket, H-type. (Note: Push-pull feeding is not available for slotted and H-type screws.)
2.Applicable screw surface finishes: Nickel plating, black oxide, copper plating, color zinc plating, bright zinc plating.
3.Screw materials: Iron (push-pull / semi push-pull / press-down); Copper, aluminum, stainless steel (semi push-pull / press-down)
4.Workpiece materials: Plastic, wood, copper, iron, aluminum, etc.
5.Applicable industries: Mobile phones, toys, hard drives, keyboards, electrical appliances, communication equipment, electronic processing.
