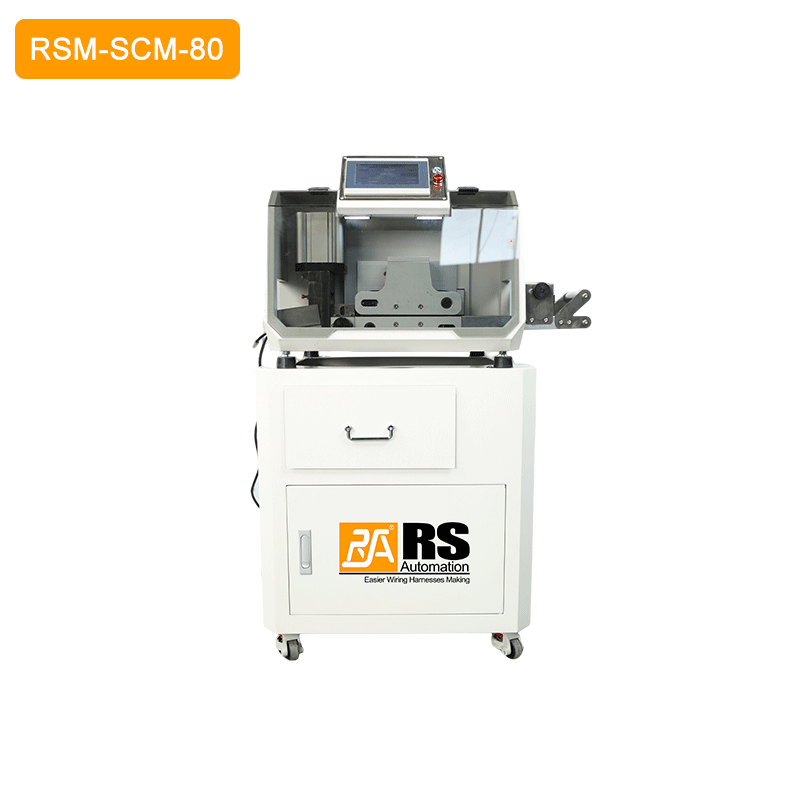

Tube/Sleeve Cutting Machine RSM-SCM-80

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • High positioning accuracy and consistent cutting guaranteed by vision system  for precise position cutting with ±0.2 mm tolerance.
  • Extended belt feeding to ensure no marks or scratches on the tube.
  • Easy operation. All parameters are adjustable via HMI.
  • Automatic positioning and cutting, reducing scrap and enhancing high efficiency.
Specification
Model RSM-SCM-80
Display 21.5" color display

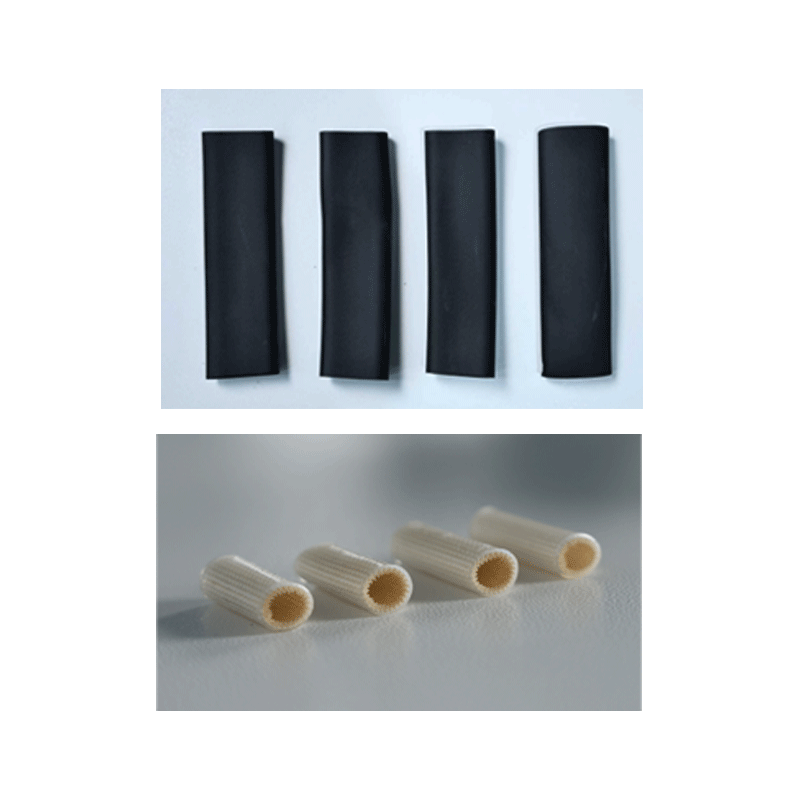

Function Visual inspection of corrugated tube peaks/valleys and cutting at specified positions
Tube O.D. 4-35mm (more than 35mm can be customized)
Cutting Length 30mm-999999.99mm
Cutting Tolerance Within 0.003*L (L=cutting length)
Productivity 600-800 pcs/h (depends on tube length and size)
Position Detection Method Vision inspection
Cutting Position Error
 		±0.2mm
Camera Field of View
 60mm
Lifting Adjustment
 Digital control
Voltage AC220V 50/60Hz (110V 50/60Hz is available)
Voltage 0.5-0.7Mpa
Weight
 190KG
Dimension
 L1024mm×W670mm×H1370mm

PDF Specification Download
RSM-SCM-80.Pdf
Video
RSM-SCM-80.Mp4
RSM-SCM-80(1).Mp4
RSM-SCM-80(2).Mp4
