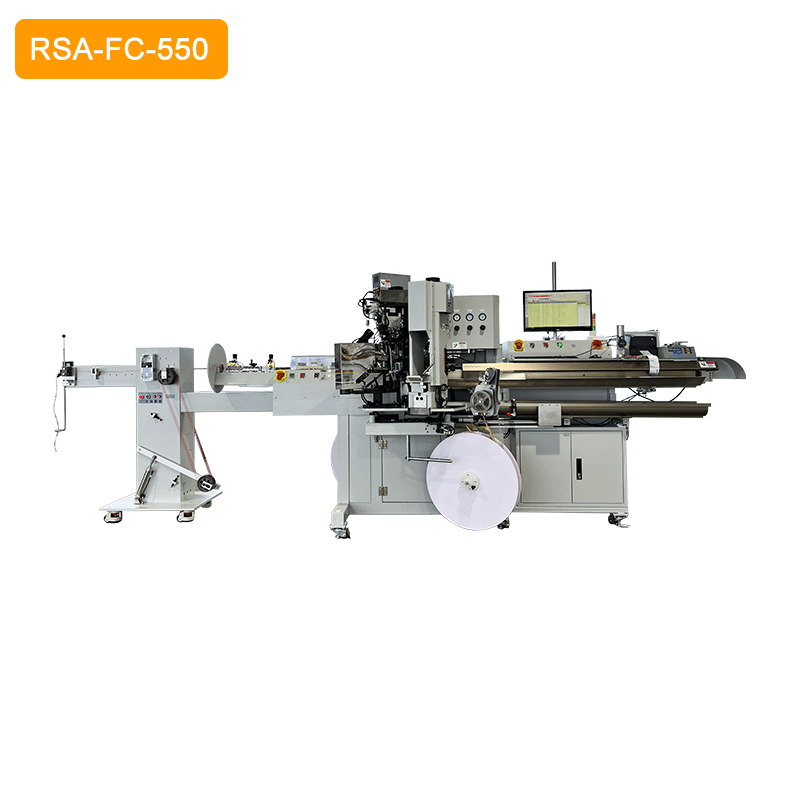

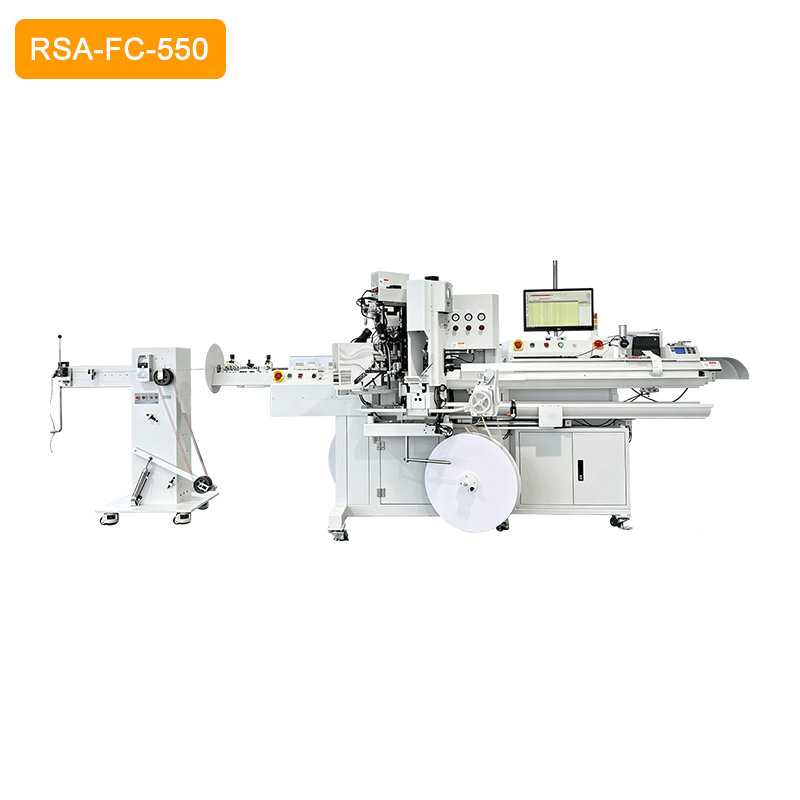

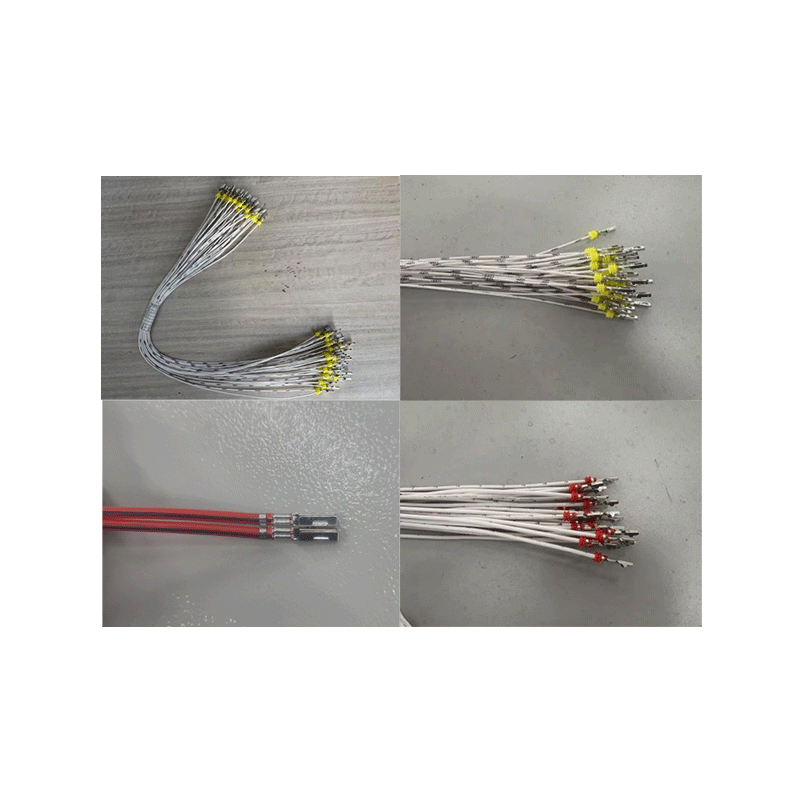

Fully Automatic Crimping Machine (Both Sides) RSA-FC-550

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • High accuracy. Adopt servo motors to guarantee accurate position of cable feeding, stripping and crimping.
  •  High processing efficiency with 4380pcs (1000mm wire) per hour. User-friendly.
  •  Cutting length, stripping length, cut depth and crimping position are adjustable on HMI.
  • MES system is available, real-time uploading, making it easy to record and troubleshoot.
  • CFM/A, CCD visual detection and other devices are optional as listed below.
Specification
Model RSA-FC-550
Function
 Fixed length wire cutting, stripping(both ends), wire seal insertion(optional), crimping(both ends), inkjet marking(optional), finished product collector
Work Stations 4 units
Wire O.D. For Stripping
 0.3-5.0mm²
Wire O.D. For Stripping
0.3-2.5mm²
Cutting Length
 60mm-99,000mm
Stripping Length
 1-18mm
Crimping Force
 2Ton/4Ton

Crimping Stroke

30/40mm

Accuracy

±(0.2+0.002*L)

Feeding Speed
 Max.13m/s
Productivity 4380pcs/h (Both sides crimping for 1000mm length wire)
Power
 2200W
Voltage
 AC220V 50HZ (single phase)
Air Source
 0.6-0.8MPa (Max. air consumption: 5.5 m³/h)
Dimension
 L7000mm×W1450mm×H1450mm (with 2-meter wire collector)

Feature
1.Wire Feeder (for thin wire) RSM-WF-550
2.Dual Wire Feeding Quick-Change System
3.Dual Applicator Quick-Change System
4.Dual Straightener Quick-Change System
5.Inkjet Marking System
6.Wire Collector (2meter–12meter) RSM-WCV-550/ 2/4.../12
7.Wire Seal Insertion Machine RSA-GSI-550S
8.CFM/CFA, Crimping Force Monitoring (OES, True Soltec) CEM-SOI 20 plus
9.Vision Inspection System / CCD Inspection System
10.Crimp Height Measurement System RSM-CHT-341
11.Pull Force Tester RSM-PTM-02,RSM-PTM-03
12.Lifting Safety Cover
13.Automotive Wire Harness MES Production Management System V1.0
