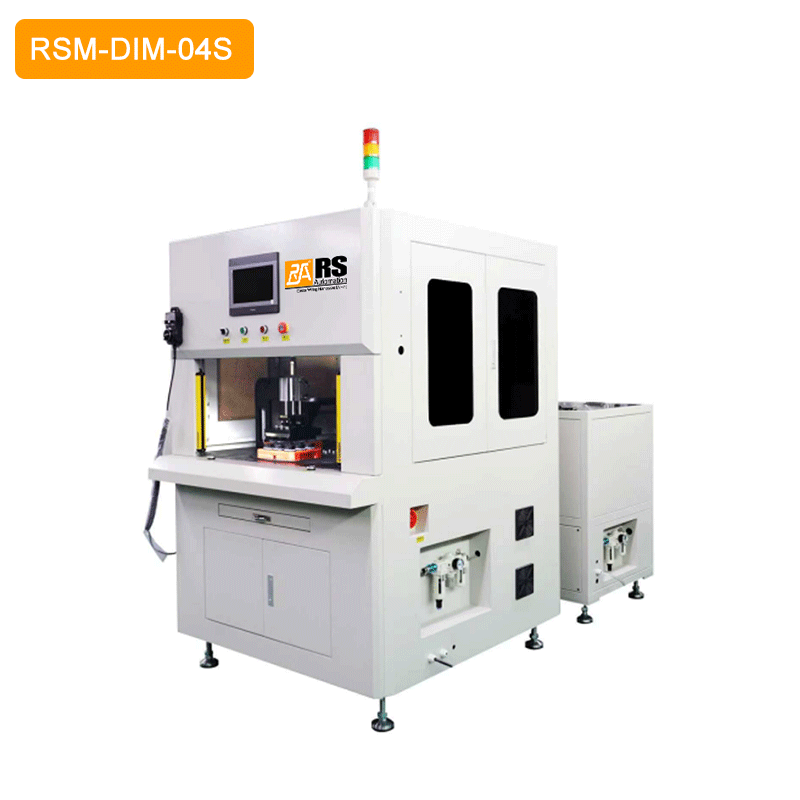

Rotary Dummy Insertion Machine (4 Inserter) RSM-DIM-04S

Description

Feature

Suitable for precision dummy insertion into various connectors of automotive wire harness.
High efficiency. Quick carrier changeover design with 4carrier cycle production, improving overall productivity.
High precision. Accurate dummy insertion ensures consistency and repeatability than manual insertion.
Strong compatibility. Supports various dummy types, which adapt to multiple production scenarios.
User friendly. Visualized control interface, easy to learn and master.
High Safety. Equipped with safety cover and stable mechanisms to ensure operator safety.
Vision inspection system is optional to increase yield and reduce defects.

Specification

Model	RSM-DIM-04S
Application	Connectors for new energy vehicles, including HV wiring harnesses, charging inlets, battery packs, and motor control units; Connectors for traditional fuel vehicles, used in the engine compartment, chassis, and in-vehicle electronic devices such as center consoles and lighting systems.
Inserter	4 Units (with 4 dummy feeders)
Connector Carries	4 Units
Insertion Capability	Can sequentially insert 4 types of dummy
Power	2000W
Air Source	0.5-0.8Mpa
Voltage	AC220V (single phase)
Weight	400KG
Dimension	L1860mm×W1100mm×H1680mm
Optional	CCD inspection, auto connector loading, auto connector unloading

PDF Specification Download
RSM-DIM-04S.Pdf

Video
RSM-DIM-04S.Mp4
