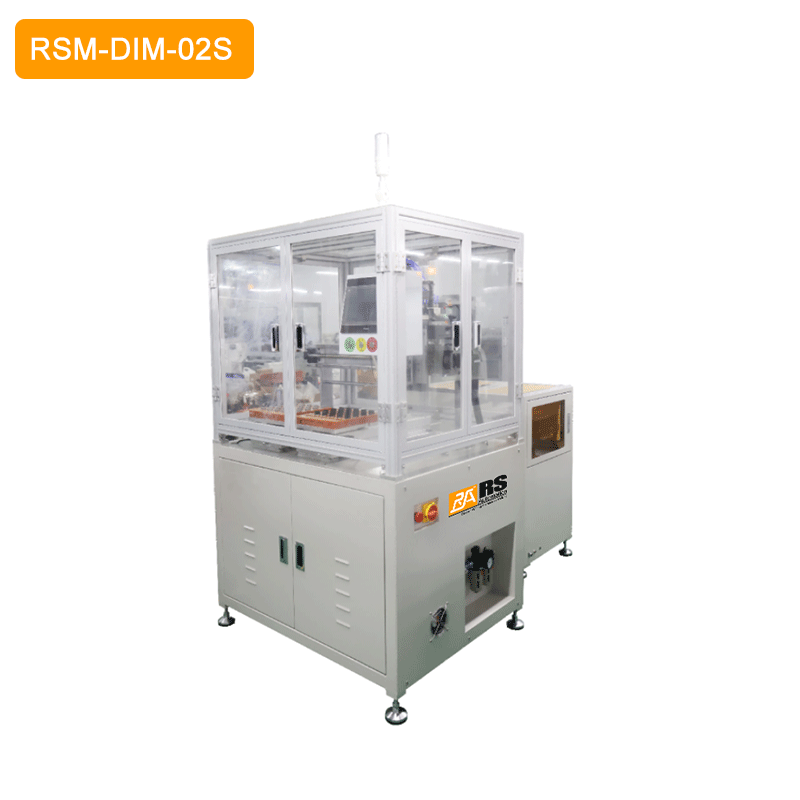

Dummy Insertion Machine (Dual Inserter) RSM-DIM-02S

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Suitable for precision dummy insertion into various connectors of automotive wire harness.
  • High efficiency. Fast operation with dual-carrier cycle production, improving overall productivity.
  • High precision. Accurate dummy insertion ensures consistency and repeatability than manual insertion.
  • Strong compatibility. Supports various dummy types, which adapt to multiple production scenarios.
  • User friendly. Visualized control interface, easy to learn and master.
  • High Safety. Equipped with safety cover and stable mechanisms to ensure operator safety.
  • Vision inspection system is optional to increase yield and reduce defects.
Specification
Model RSM-DIM-02S
Inserter
 2 Units (with dual dummy feeders)
Connector Carries 2 Units
Insertion Capability
 Can sequentially insert 2 types of dummy
Power
2000W
Air Source
 0.5-0.8Mpa
Voltage
 AC220V (single phase)
Weight
 400KG

Dimension

L1860mm×W1100mm×H1680mm

Optional

CCD inspection, auto connector loading, auto connector unloading


PDF Specification Download
RSM-DIM-02S.Pdf
Video
RSM-DIM-02S.Mp4
