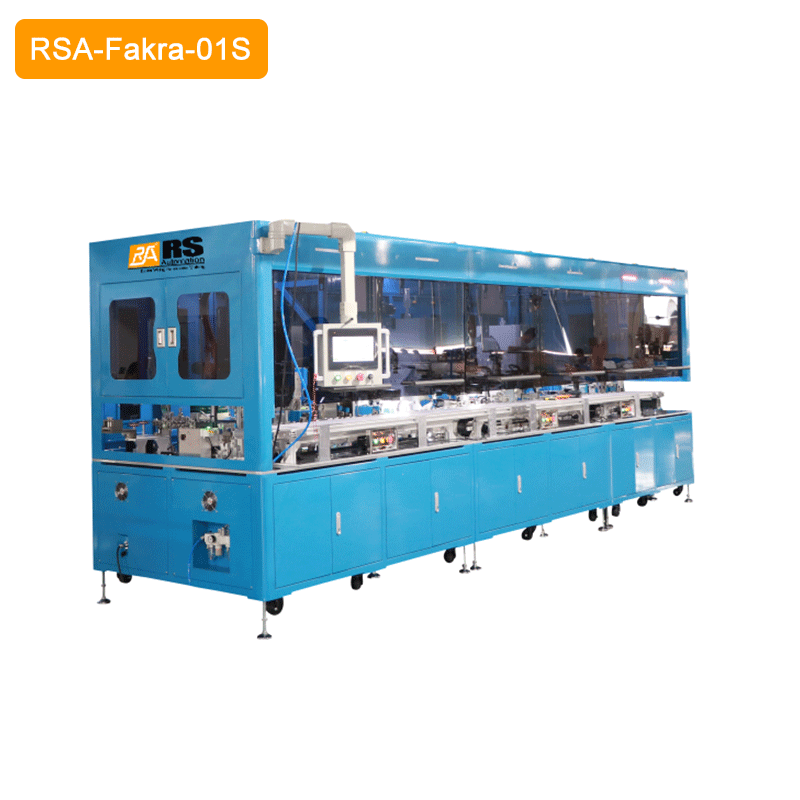

FAKRA Connector Assembly & Crimping Machine (Single-end) RSA-Fakra-01S

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Deep integration of automation, informatization, and intelligent manufacturing.
  • Automatic testing, stripping, assembly, crimping, checking, and AIO vision inspection all in one machine.
  • Shortened machine adjusting and delivery lead times, customers benefit quickly.
  • Highly flexible system with rapid changeover capability.
Specification
Model RSA-Fakra-01S
Cutting Length
 150–5000 mm (coiling required for lengths exceeding 1000 mm)
Wire O.D. φ2.8mm-φ3.2mm
Stripping Length
 15mm
Productivity
800-900pcs/h
Cycle Time
 4-4.5s (each station)
Yield
 ≥98%
Power
 5000W

Voltage

AC220V 50HZ (single phase)

Air Source

More than 0.5Mpa

Weight
 1500KG (Floor load capacity shall be not less than 0.5 t/m²)
Dimension L6000mm×W1400mm×H2300mm

PDF Specification Download
RSA-Fakra-01S.Pdf
Video
RSA-Fakra-01S.Mp4
RSA-Fakra-01S(1).Mp4
RSA-Fakra-01S(2).MP4
