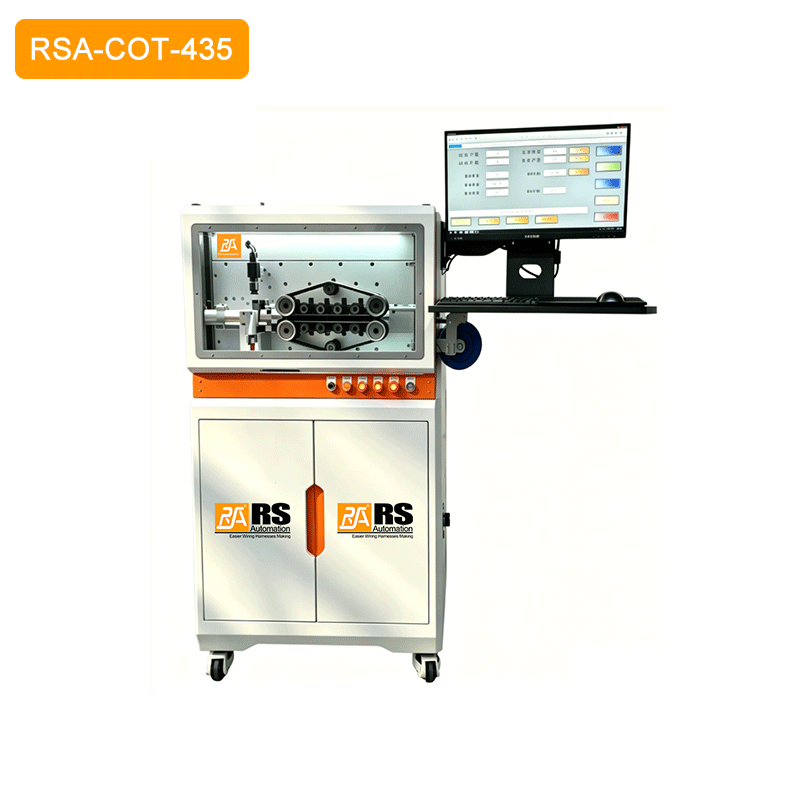

Vision-based Tube Cutting Machine RSA-COT-435

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • High positioning accuracy and consistent cutting guaranteed by vision system  for precise position cutting with ±0.2 mm tolerance.
  • Extended belt feeding to ensure no marks or scratches on the tube.
  • Easy operation. All parameters are adjustable via HMI.
  • Automatic positioning and cutting, reducing scrap and enhancing high efficiency.
Specification
Model RSA-COT-435
Display
 21.5" color display

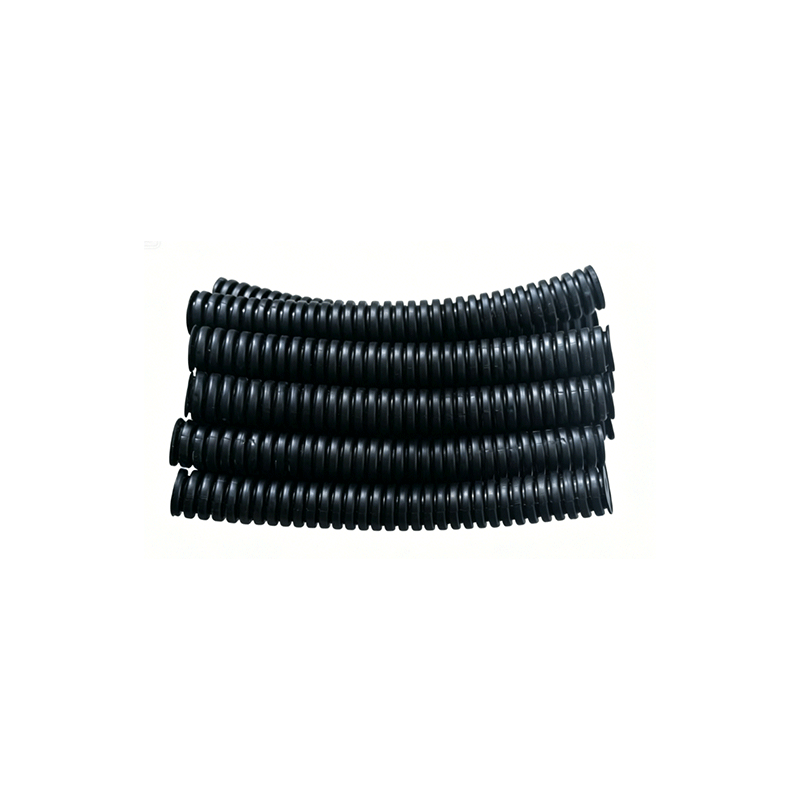

Function Visual inspection of corrugated tube peaks/valleys and cutting at specified positions
Tube O.D.
 4-35mm (more than 35mm can be customized)
Cutting Length 30mm-999999.99mm
Cutting Tolerance Within 0.003*L (L=cutting length)
Productivity 600-800 pcs/h (depends on tube length and size)
Position Detection Method Vision inspection
Cutting Position Error ±0.2mm
Camera Field of View 60mm
Lifting Adjustment Digital control
Voltage
 AC220V 50/60Hz (110V 50/60Hz is available)
Air Source
 0.5-0.7Mpa
Weight
 190KG
Dimension
 L1024mm×W670mm×H1370mm

PDF Specification Download
RSA-COT-435.Pdf
Video
RSA-COT-435.MP4
RSA-COT-435(1).Mp4
