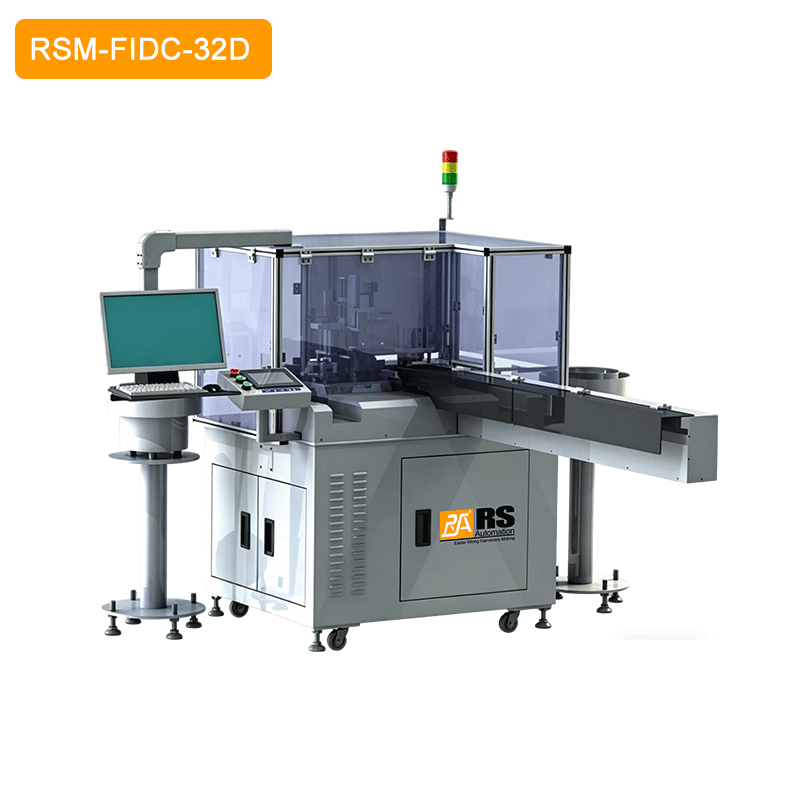

Fully Automatic IDC Crimping Machine (Both Ends) RSM-FIDC-32D

Description

Feature

Precise, efficient and stable processing guaranteed by Keyence control system and servo motors.
Advanced fault detection system to monitor machine error and stop automatically for quick troubleshooting.
Simple and quick adjustment on HMI, greatly reducing setup time.
Crimping position is adjusted via touchscreen to ensure more precise and stable crimping.
Quick changeover applicator design to ensure short product changeover time.

Specification

Model	RSM-FIDC-32D

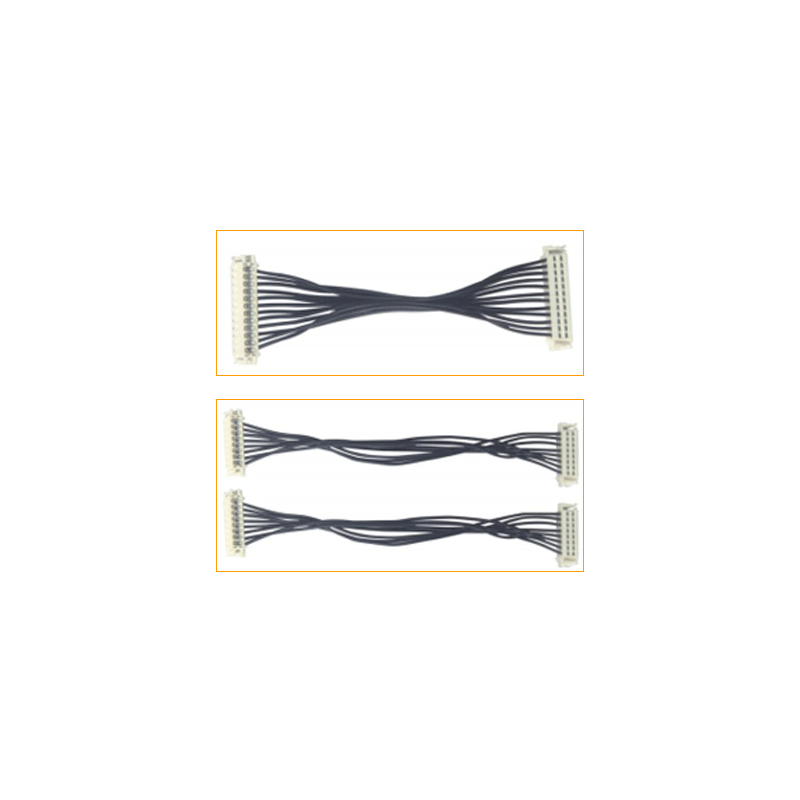

Functions	Wire cutting, IDC crimping(single end/both ends)
Quality Check	Cutting length check, IDC crimp in-position check
Wire Selection	8 wire colors available
Cutting Length	50mm-1000mm
Cutting Accuracy	1mm + 0.1% of cutting length (max.)
Stripping Length	0-16mm
Pitch	1.5mm-2.54mm
Productivity	1000pcs per hour (depends on product)
Air Source	0.5-0.6Mpa/5-6kgf (clean air)
Voltage	AC220V 50/60Hz (single phase)
Dimension	L2050mm×W2000mm×H1600mm (extrusion part excluded)

PDF Specification Download
RSM-FIDC-32D.Pdf
Video
RSM-FIDC-32D.Mp4
