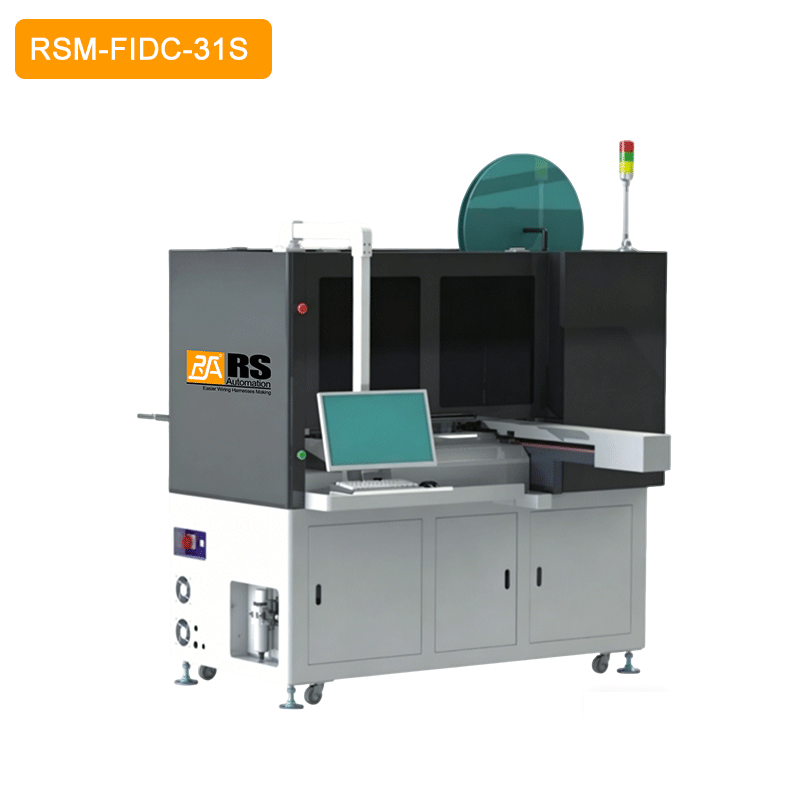

Fully Automatic IDC Crimping Machine (Single End) RSM-FIDC-31S

0.00
0.00
Quantity:
(Inventory: 0)
Buy now
Add to cart

Description
Feature
  • Precise, efficient and stable processing guaranteed by Keyence control system and servo motors.
  • Advanced fault detection system to monitor machine error and stop automatically for quick troubleshooting.
  • Simple and quick adjustment on HMI, greatly reducing setup time.
  • Crimping position is adjusted via touchscreen to ensure more precise and stable crimping.
  • Quick changeover applicator design to ensure short product changeover time.
Specification
Model RSM-FIDC-31S
Functions

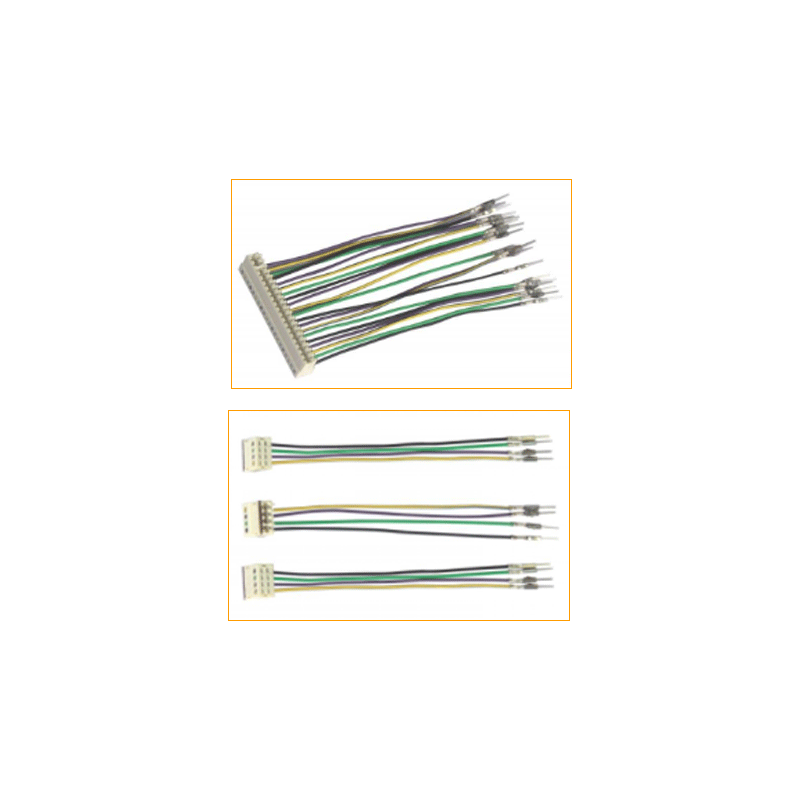

 Wire cutting, wire stripping(End A), terminal crimping(End A), IDC crimping(End B)
Quality Check
 Cutting length check, CCD terminal visual check, IDC crimp in-position check, CFM/A
Wire Selection
 8 wire colors available
Cutting Length
 50mm-1000mm
Cutting Accuracy
 1mm + 0.1% of cutting length (max.)
Stripping Length
 0-16mm
Pitch
 1.5mm-2.54mm
Productivity
 1000pcs per hour (depends on product)
Air Source
 		0.5-0.6Mpa/5-6kgf (clean air)
Voltage
 AC220V 50/60Hz (single phase)
Dimension
 L1900mm×W2050mm×H1900mm (extrusion part excluded)

PDF Specification Download
RSM-FIDC-31S.Pdf
 Video
RSM-FIDC-31S.Mp4
