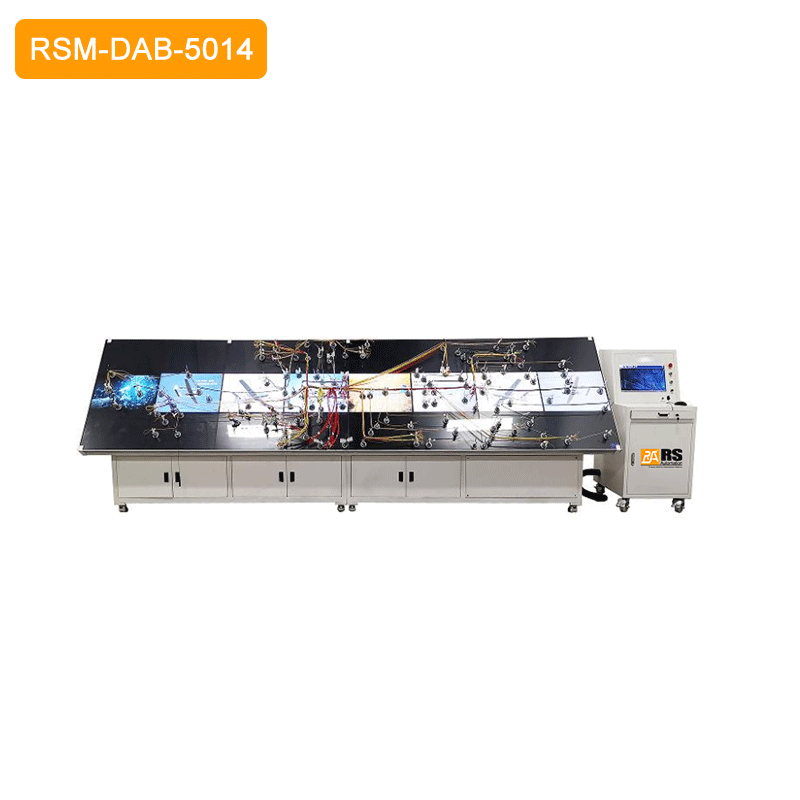

Digital Assembly Board RSM-DAB-5014 (varies acc. to customer product)

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Fast changeover. Switch products with just a click and no need to change the wiring board.
  • Lower maintenance cost. No drawings, no drilling, no storage space for bulky boards.
  • 1:1 CAD drawings shown in actual size on the screen for direct harness comparison.
  • Smart guidance. Guide by highlighting and wire number for easier beginners learn and lower defect rate.
  • Flexible combination. Screen quantity can be customized to fit different product sizes.
  • Unlimited data. Drawings stored permanently, remote access, which adapt to changing products without changing boards.
  • Full-metal ultra-narrow bezel and HD display. Proprietary graphics algorithm ensures 1:1 scale display with no image breaks, no distortion.
  • Complete after-sales service. Provide on-site repair at no cost to the customer only for product defect instead of improper use.

Specification
Model

RSM-DAB-5014 (varies acc. to customer product)

Display 55 inch  (take 55-inch display as example)
Display Quantity
 		8PCS (for reference only. The QTY is customized acc. to customer product)
Backlight Type
 D-LED
Resolution 3840*2160
Aspect Ratio
 		16:9
Brightness
400cd/m²
Contrast Ratio
 1000:1
Viewing Angle
 178°/178°
Response Time
 8ms (gray to gray)
Color Depth
 8-bit 16.7M
Input Port
 USB*1 + HDMI*2 + DVI*1+VGA*1+CVBS IN*1+RS232 IN*1
Output Port
 RS232 OUT*2
Basic Configuration
 Windows 7; CPU: Quad-core 1.6 GHz; RAM: 32 GB; Storage: 1 TB;  Software: Pre-installed wiring screen software
File Transfer Ways
 1.USB flash drive.
2.Network shared folder.
3.Via program interface with server system (customized; can connect to customer’s existing MES systems for data exchange)
Voltage
 AC 220V 50/60Hz (single phase)
Power
 ＜150W
Operating Hours
 7×16H
Service Life
 30000H
Ambient Temperature
 0-40℃
Relative Humidity
 20%-80%
Material
 Metal hardware
Mount Way
 Wall-mounted installation
Weight (each screen)
 18kg (single 55-inch screen)
Dimension(each screen)
 L1210mm×W685mm
Total Dimension
(8 screens in one row)

 L9680mm×W685mm (other sizes is available acc. to customer product)
Total Height
 ＜2.2Meters (screens & bracket included)



PDF Specification Download
