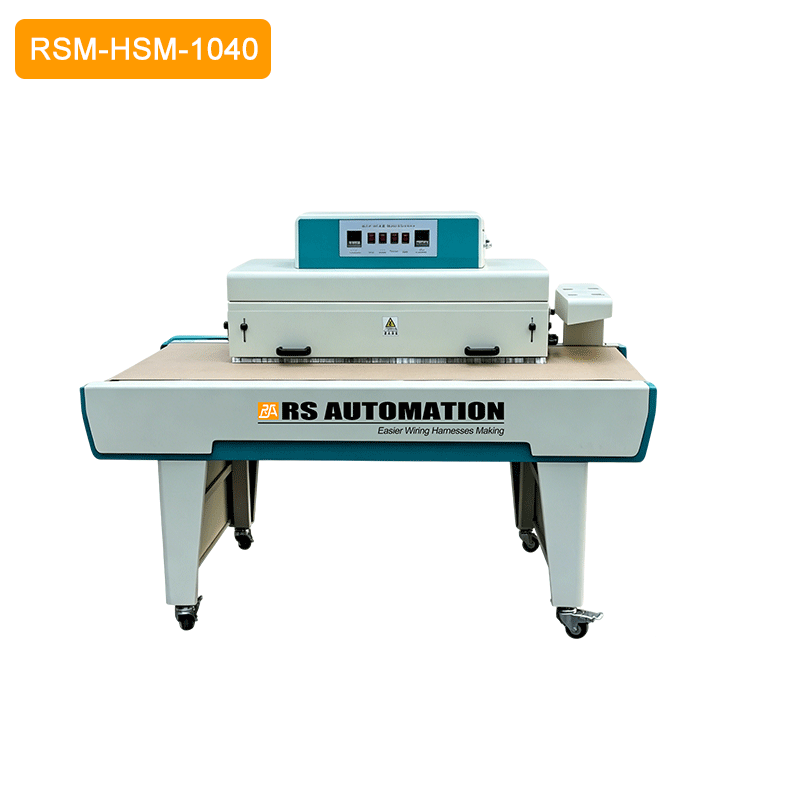

Heat Shrink Tubing Machine (Suspended Bracket) RSM-HSM-1040

Description

Feature

The suspended design ensures even heat distribution and prevents product deformation.
Higher productivity with larger working area of high-temperature resistant PTFE mesh belt and continuous feeding mode.
Widely applicable. Different sizes of harnesses can be baked thanks to compact suspended design and movable shrinking area.
Work temperature and conveyor speed are adjustable to tailor to different products’ shrinking.
Safe and durable. Avoid high temperature around the machine by independent control box and double-layer heating box with insulation cotton (temperature resistance: 1200℃).
Bracket is customizable according to your production line and production requirement.

Specification

Model	RSM-HSM-1040
Heating Temperature	0-260℃
Heating Method	Dual temperature control (double-sided heating)
Heating Tube	Far Infrared Heating Tube
Conveyor Speed	0-6 meters/min
Conveyor Load	20kg
Conveyor Material	High-temperature PTFE mesh belt
Configuration	Hot air blower, conveyor belt guide
Power	4KW
Voltage	AC220V/50HZ (single phase) (110V available)
Weight	100KG
Heating Chamber	L1000mm×W400mm×H280mm
Heating Zone	L1000mm×W360mm×H100mm
Bracket Dimension	L1600mm×W700mm×H1200mm
