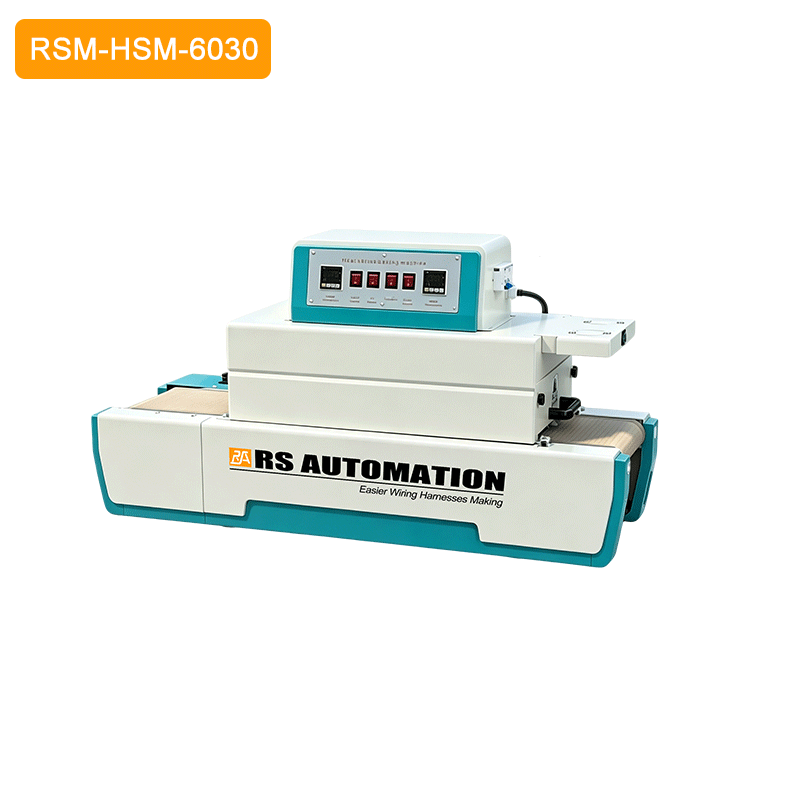

Heat Shrink Tubing Machine (Inline Type) RSM-HSM-6030

Description

Feature

Suitable for heat shrink tubing of small-sized products such as wire harness, heat shrink film packaging, PCBs, inductor coils.
Higher productivity with larger working area of high-temperature resistant PTFE mesh belt and continuous feeding mode.
Track-type design for automatic wire unloading.
Work temperature and conveyor speed are adjustable to tailor to different products’ shrinking.
Safe and durable. Avoid high temperature around the machine by independent control box and double-layer heating box with insulation cotton (temperature resistance: 1200℃).
Bracket is optional according to your production line and production requirement.

Specification

Model	RSM-HSM-6030
Heating Temperature	0-260℃
Heating Method	Dual temperature control (double-sided heating)
Heating Tube	Far Infrared Heating Tube
Conveyor Speed	0-6 meters/min
Conveyor Load	10kg
Conveyor Material	High-temperature PTFE mesh belt
Configuration	Hot air blower, conveyor belt guide
Power	2.8KW
Voltage	AC220V/50HZ (single phase) (110V available)
Weight	40KG
Heating Chamber	L630mm×W300mm×H200mm
Heating Zone	L630mm×W240mm×H80mm
