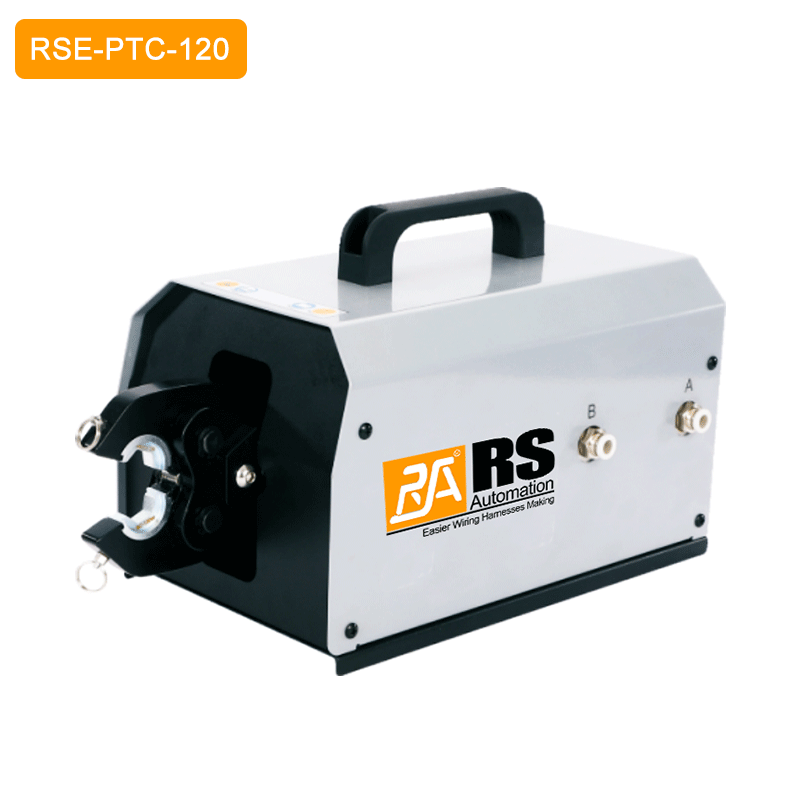

Pneumatic Terminal Crimping Machine RSE-PTC-120

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Highly efficient. 3 wires are processed at the same time and seal insertion, wire stripping and wire crimping are combined into one.
  • Adopt servo motor to guarantee highly accurate stripping and stable crimping.
  • The parameters is adjustable on the intuitive software with touch screen controls.
  • Safety cover is included for operator protection.
  • Other options are also possible: CFA/M, OES seal insertion and stripping inspector, camera check for stripping/seal insertion/seal position/crimping/flash.
Specification
Model RSE-PTC-120
Applicable Terminal
 Bottom-entry copper lug (DTGA type), TO type, SC type, open-end lug type
Cable Range
 		6-120mm²(hex crimp); 6-95mm²(indent crimp);
2.5-50mm² (B-shape crimp; open-end lug 5-300A)
Crimping Force
 6.8Ton (at 0.7Mpa)
Air Source
 0.5-0.8Mpa
Weight
 		0.5-0.8Mpa
Dimension
 L390mm×W180mm×H230mm

PDF Specification Download
RSE-PTC-120.Pdf
