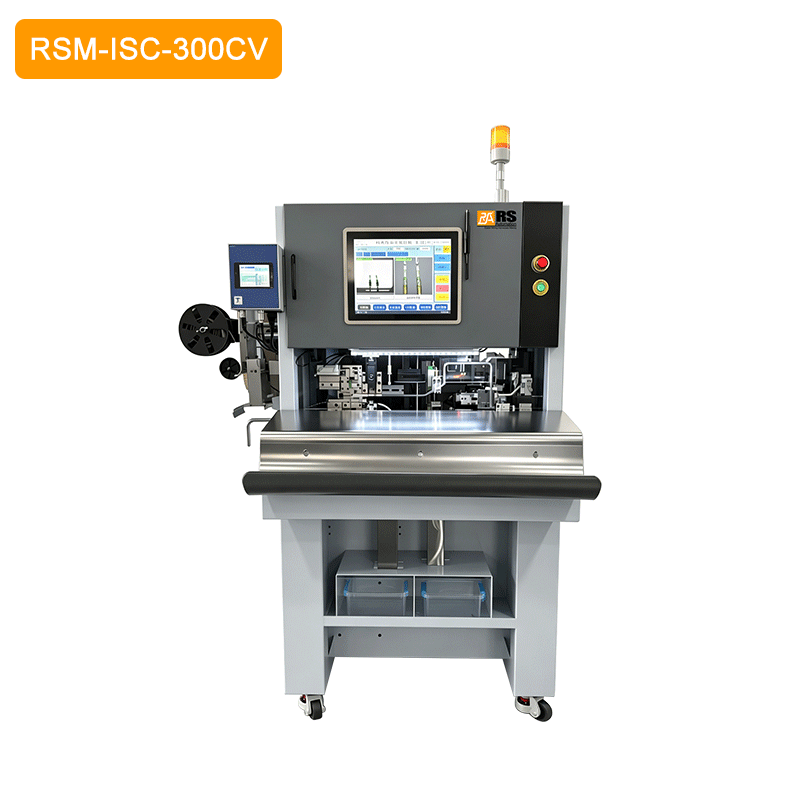

Semi-automatic Seal Insertion, Wire Stripping & Crimping Machine (Three Wires) RSM-ISC-300CV

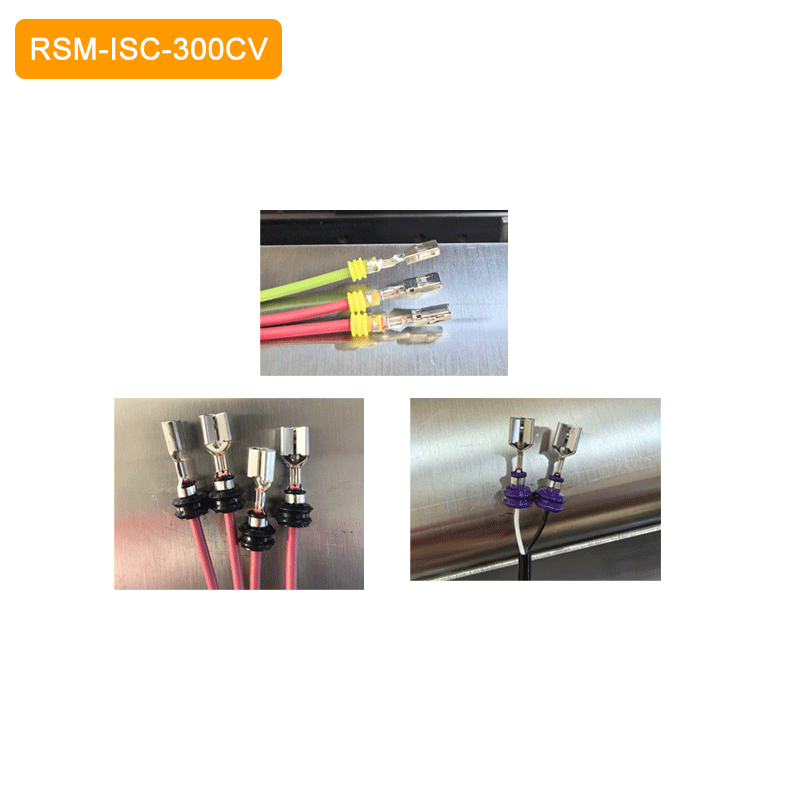

Description

Feature

Highly efficient. 3 wires are processed at the same time and seal insertion, wire stripping and wire crimping are combined into one.
Adopt servo motor to guarantee highly accurate stripping and stable crimping.
The parameters is adjustable on the intuitive software with touch screen controls.
Safety cover is included for operator protection.
Other options are also possible: CFA/M, OES seal insertion and stripping inspector, camera check for stripping/seal insertion/seal position/crimping/flash.

Specification

Model	RSM-ISC-300CV
Applicable wire diameter	φ1 mm – φ3 mm (2 wires with 8 mm spacing) φ1 mm – φ5 mm (2 wires with 16 mm spacing)
Wire Seal O.D.	≤ φ7 mm, length ≤ 8mm (2 wires with 8 mm spacing) ≤ φ12 mm, length ≤ 8mm (2 wires with 16 mm spacing)
Wire Seal Length	≤8mm
Stripping Length	0.1 – 10 mm
Stripping Accuracy	±0.1mm
Cut Depth Accuracy	±0.02mm
Sheath Cable Stripping Length	For three wires: ≥ 28 mm For two wires with 8 mm spacing: ≥ 22 mm For two wires with 16 mm spacing: ≥ 28 mm (If the seal length is out of range, strip length will be increased accordingly)
Crimping Accuracy	±0.05mm
Detector Alarms	Low air pressure, seal feeding abnormality
Cycle time	2.5-3 sec
Productivity	1200-1440pcs per hour
Air Source	0.5~0.7MPa
Power	2000W
Voltage	AC220V 50/60HZ (single phase)）
Weight	450KG
Dimension	L1200mm × W1100mm × H1750mm
Required Floor Space	L2000mm × W1600mm × H1750mm
