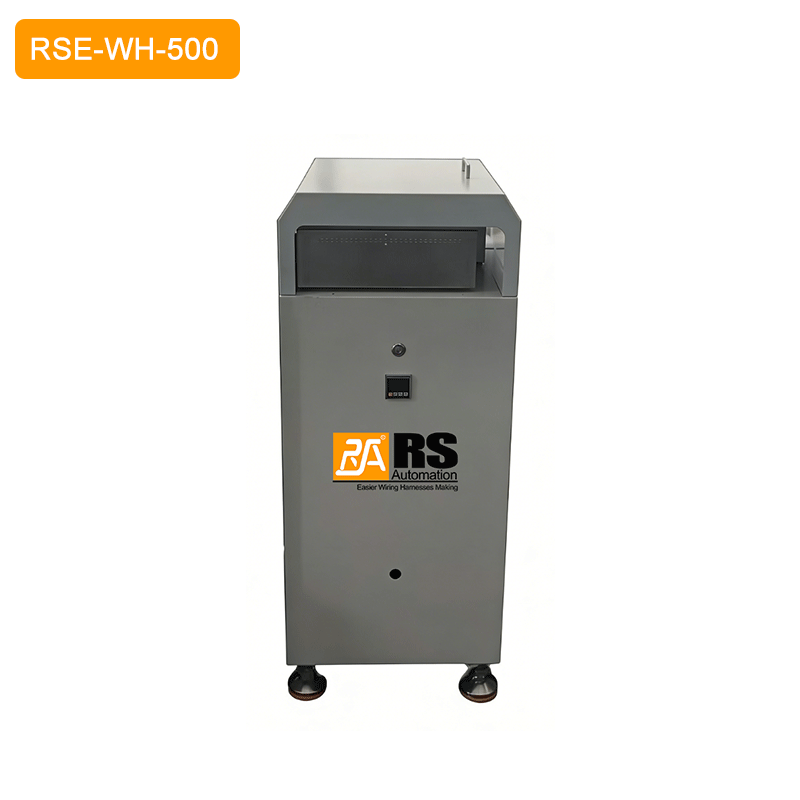

Wire Heater RSE-WH-500

Description

Feature

Under low ambient temperature, the wires passing through the oven are heated over their entire surface area.
Preheat the wires to remove moisture, soften the insulation, and facilitate subsequent wire processing.
Even temperature control and no damage to wires, guaranteed by hot air circulation heating.

Specification

Model	RSE-WH-500
Cable O.D.	0.5-3mm
Heating Method	Hot air convection heating
Simultaneous Heating Capacity	Max.24pcs
Function	Wire missing sensor; temperature controller
Voltage	AC220V 50/60HZ (single phase)
Power	300W (including heating element 200W）
Weight	About 50KG
Dimension	L500mm×W500mm×H1100mm

PDF Specification Download
RSE-WH-500.Pdf
