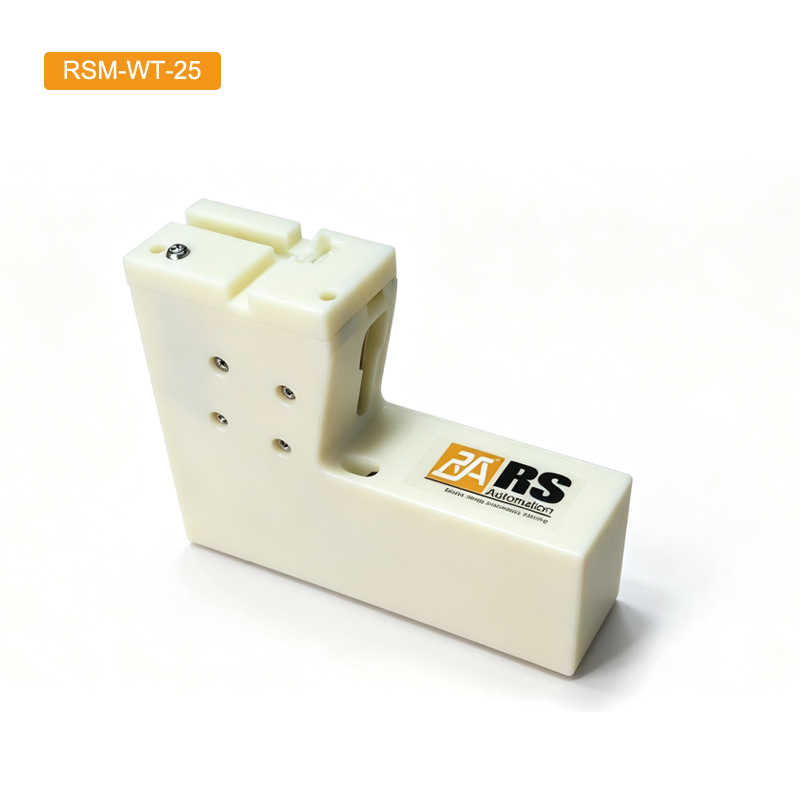

Heavy-duty Cable Tie Strapping Machine RSM-WT-25

Description

Feature

Heavy-duty version, stronger pull force for large cable ties.
Higher efficiency by combining cable tie hole inserting and tie tail cutting into one stop.
Lower Cost. Save time and labor of inserting cable tie hole and cutting tie tail.
Reduce the work fatigue of operator compared to the traditional cable tie processing.
Compact design, applicable to multiple situations.

Specification

Model	RSM-WT-25
Pull Force	Min.20kgf, ≥25kgf is available
Cable Tie Width	≤7mm
Cable Tie Thickness	0.8mm-1.6mm
Min. Bundle Size	Customized acc. to cable tie size
Max. Bundle Size	Customized acc. to cable tie size
Residual Length	Min. 2mm
Cycle Time	1sec per piece (cable tie length: 100mm)
Voltage	AC220V (single phase)
Power	100W
Air Source	No air source needed
Weight	4-5kg
Dimension	L215mm×W50mm×H160mm (clip holder is excluded)

PDF Specification Download

Video
