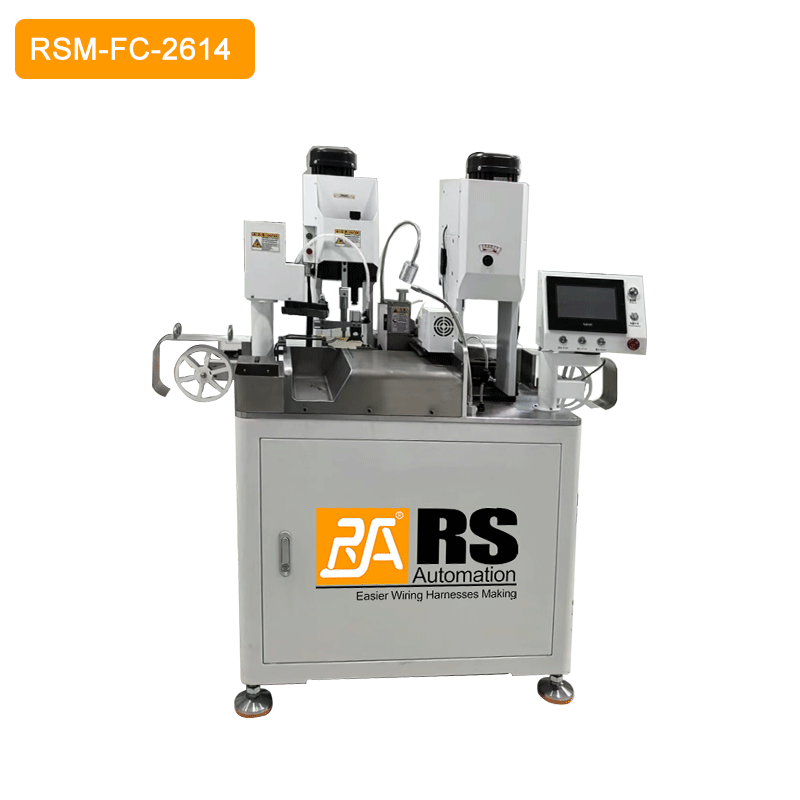

Fully Automatic Terminal Crimping Machine (Both Ends) RSM-FC-2614

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Combines cutting, stripping (both ends), and single/double-end crimping in one machine, reducing handling time and labor costs.
  • Suitable for processing wire of AWG#26 to #14 with high productivity of 4000~4800pcs/h .
  • Adopt mitsubishi servo motor to guarantee precise cuts with a tolerance of ±0.02% for long wires (≥1000mm).
  • Lower maintenance cost. Equipped with a standard 2Ton press, compatible with OTP side-feed and end-feed applicators.
  • Customizable crimping force and applicators are available to meet diverse needs.
  • User-friendly. All parameters can be set on the intuitive 7-inch touch screen.
Specification
Model RSM-FC-2614
Function
 Wire cutting, stripping(both ends), half stripping (single end), crimping(single end/both ends)
Wire Size AWG#26~#14
Cutting Length
 26mm~9999mm
Cutting Tolerance
±0.02% (cutting length≥1000mm)
Cutting Speed
 5500pcs/h (cutting length≤100mm)
Stripping Length
 0.5mm~35mm (half stripping if strip length＞12mm)
Crimping Force
 Standard 2.0Ton (customized)

Applicable Applicator

OTP side-feed applicator, end-feed applicator (European-style applicator is customized)

Productivity

4000~4800pcs/h (Wire length within 30~200mm)

Voltage
 AC220V/50Hz (single phase)
Power 1.8KW
Air Source
 0.5~0.6MPa (stable, clean, dry)
Weight
 360KG
Dimension
 L1380mm×W750mm×H1580mm

PDF Specification Download
RSM-FC-2614.Pdf
