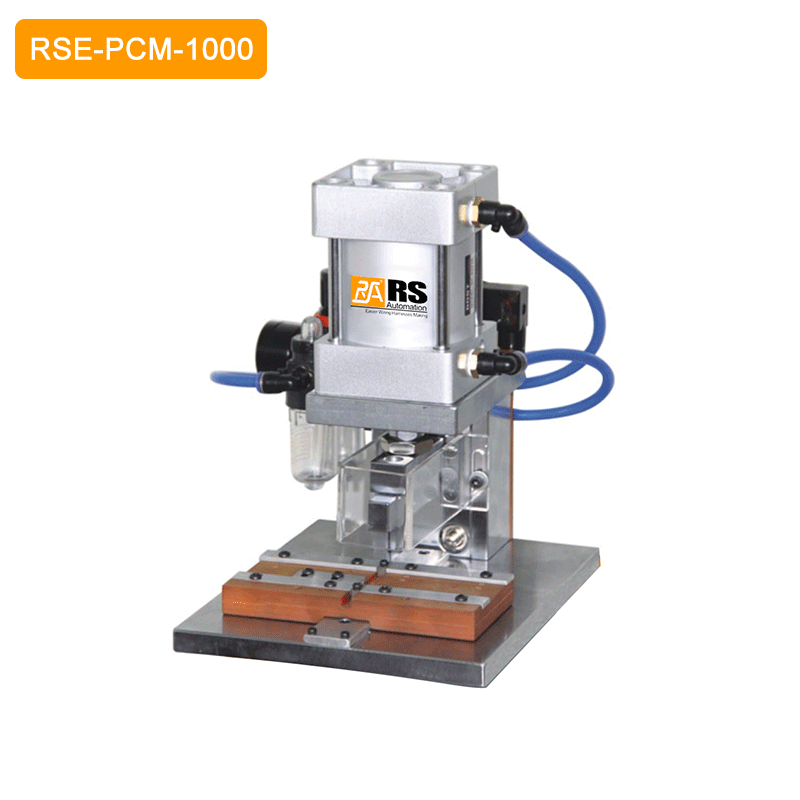

IDC Crimping Machine RSE-PCM-1000

0.00
0.00
Quantity:
(Inventory: 0)
Buy now
Add to cart

Description
Feature

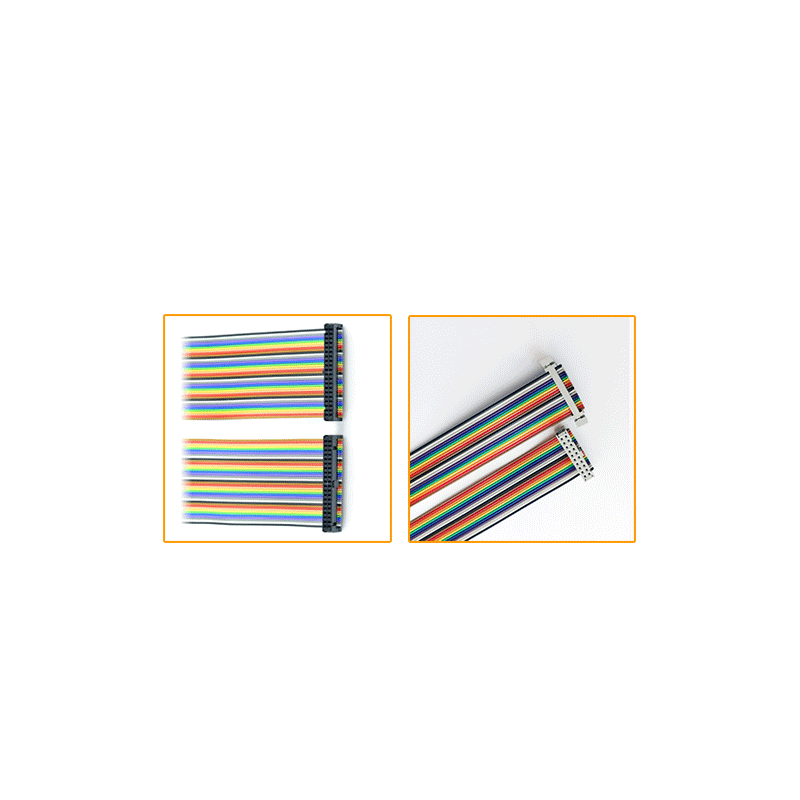

  • Designed for 40P–64P IDC ribbon cable connector crimping, to replaces manual hand crimping tools.
  • Low air consumption, low failure rate, and lower maintenance cost.
  • Used with a bakelite base, to ensure wear resistance and high precision.
  • User-friendly. Auto crimp after ribbon insertion, easy to operate.
  • 300–600 cycles per hour, varies by product.

Specification
Model RSE-PCM-1000

Function

Crimping of IDC and ribbon cables
Number of Pins
 40-64Pin
Productivity
 300-600pcs/h (depends on the product type)
Voltage
 AC220V (single phase)
Air Source
 6-8kg/0.6-0.8Mpa
Weight
 14kg
Dimension
 L250mm×W200mm×H330mm

PDF Specification Download
RSE-PCM-1000.Pdf
 Video
