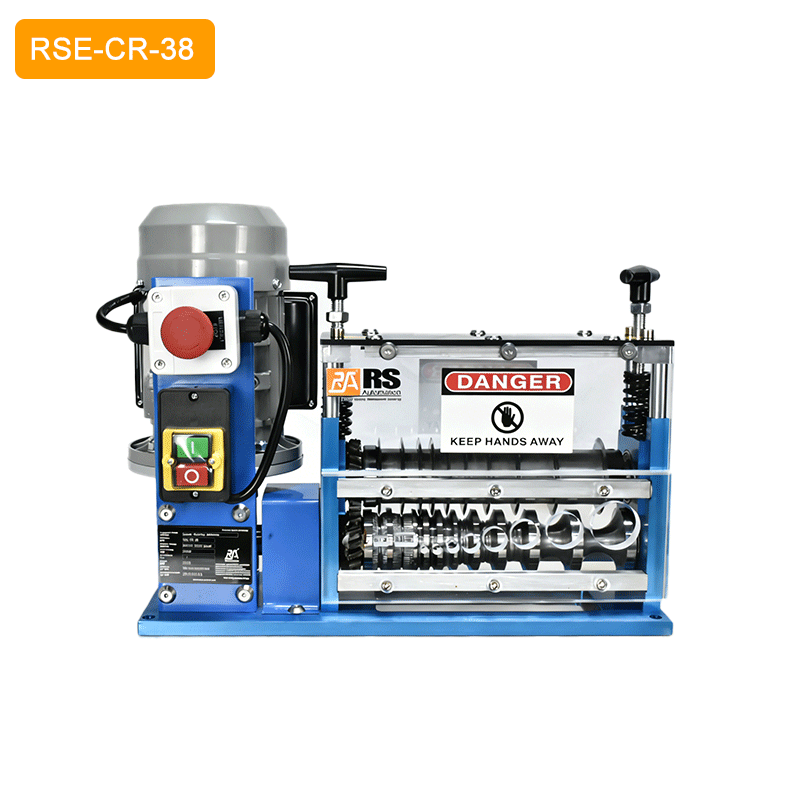

Cable Scoring Machine RSE-CR-38

Description

Feature

Suitable for scoring the sheath of cables without damaging the inner conductor, facilitates manual stripping of the insulation.
User-friendly. Mechanical adjustment for any insulation thickness.
All-in-one solution. 10 feed holes for high flexibility and wider diameter range.

Specification

Model	RSE-CR-38
Applicable Cable	Small-gauge cables, flexible/stranded cables, standard power cables, low-voltage cables (high-voltage cables, high-density insulation materials, or armored cables are excluded)
Tube O.D.	1.5mm-30mm
Cable Feeding Holes	10pcs
Productivity	15 meters/min
Voltage	AC220V 50HZ (single phase)
Power	750W
Weight	23kg
Dimension	L470mm×W290mm×H370mmvv

PDF Specification Download

RSE-CR-38.Pdf

Video
