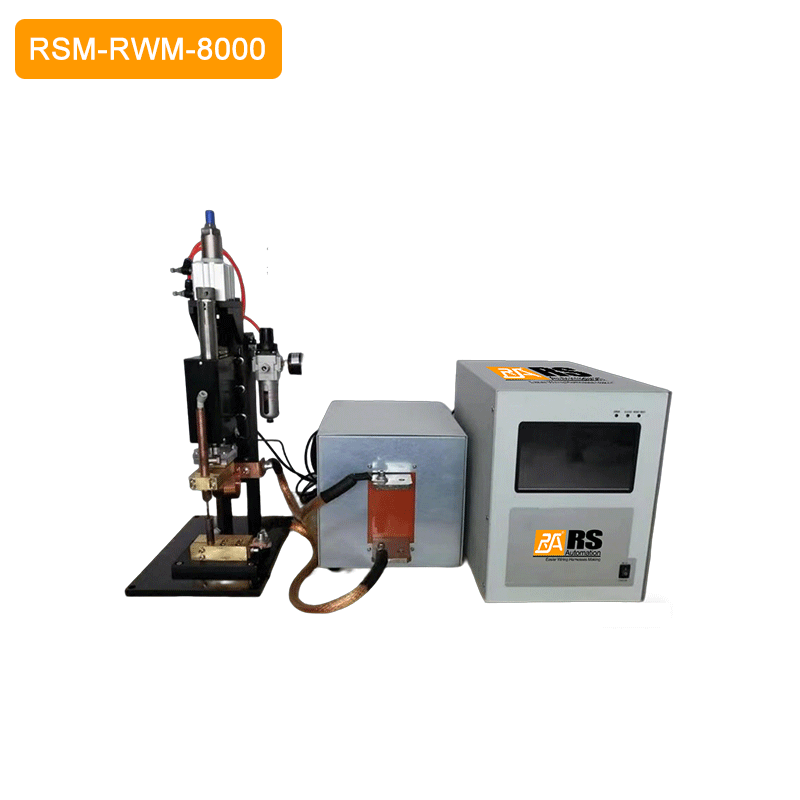

DC Resistance Welding Machine RSM-RWM-8000

Description

Feature

The medium-frequency transformer is significantly smaller in size while delivering higher efficiency, resulting in approximately 30% energy savings.
Inverter system is immune to power supply fluctuations to ensure the stable welding process.
Stable current control minimizes spatter during resistance welding.
Suitable for welding of aluminum, copper, stainless steel, and more.
The system supports both parameter entry and graphical waveform input, allowing users to create complex resistance welding current waveforms.
Precision Digital Control. Fine-tune welding time down to the millisecond for ultimate process control and higher throughput.
Proprietary IGBT control ensures real-time monitoring, diagnosis, and protection, keeping the power switch within safe limits for ultimate reliability.

Specification

Model	RSM-RWM-8000
Maximum Welding Current	8000A
Control Frequency	10KHZ
Control Mode	Constant current, constant voltage, constant power
Weld Spot Length①	3-4mm
Wire Size①	O.D. 0.3-2.0mm (1-4mm²) (U-groove welding tip depends on wire size)
Tab/Copper Thickness①	0.1-1mm
Weld Spot Length②	5-6mm
Wire Size②	O.D. 0.3-1.5mm（1-3mm²） (U-groove welding tip depends on wire size)
Tab/Copper Thickness②	0.1-0.5mm
Output Setting Range	Current 50-8000A
Welding Time Range	0-1000ms
Current Control	AC380V 50/60HZ (5-Wire, 3-Phase)
Welding Pulse	3 pulses
Weight	16.5KG
Dimension	L440mm×W235mm×H320mm
MF Transformer Weight	35KG
MF Transformer Dimension	L350mm×W235mm×H238mm
Apparent Power	80KVA

PDF Specification Download
RSM-RWM-8000.pdf
Video
RSM-RWM-8000.Mp4
RSM-RWM-8000(1).Mp4
