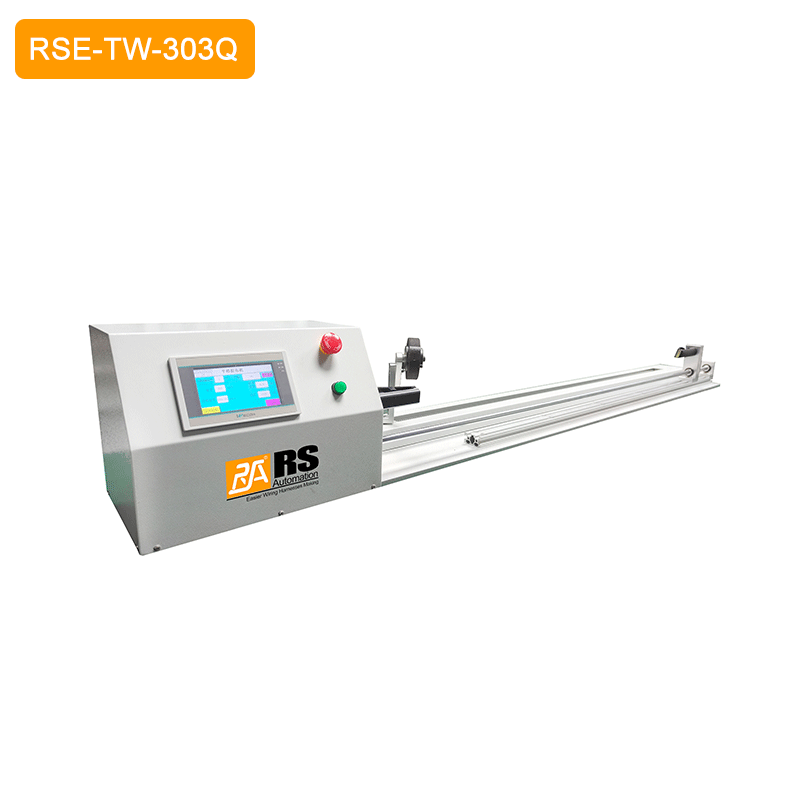

Tape Wrapping Machine RSE-TW-303Q

Description

Feature

User-friendly. Manual wire clamping, auto tape traversing and wire rotating for tape wrapping.
Wire twisting is prevent during tape wrapping by synchronous rotation of two wire grippers.
Economic model. Optimized your invest in harness processing.
Tape wrapping length and tape holder are both customized acc. to your needs.

Specification

Model	RSE-TW-303Q
Applicable Tape	PVC tape, flocking tape, acetate cloth tape, etc.
Tape Roll I.D.	Ф38mm or Ф32mm
Tape Roll O.D.	≤Ф100mm
Tape Width	≤25mm (tape holder is customizable acc. to your tape size)
Wire O.D.	3mm-10mm
Wrapping Length	Max.1000mm (Customized)
Voltage	AC210V-AC240V (single phase)
Control Way	Touch screen, foot switch
Cooling Method	Natural air cooling
Work Temperature	0-45℃
Relative Humidity	10-90%RH (Non-condensing)

PDF Specification Download

RSE-TW-303Q.Pdf
