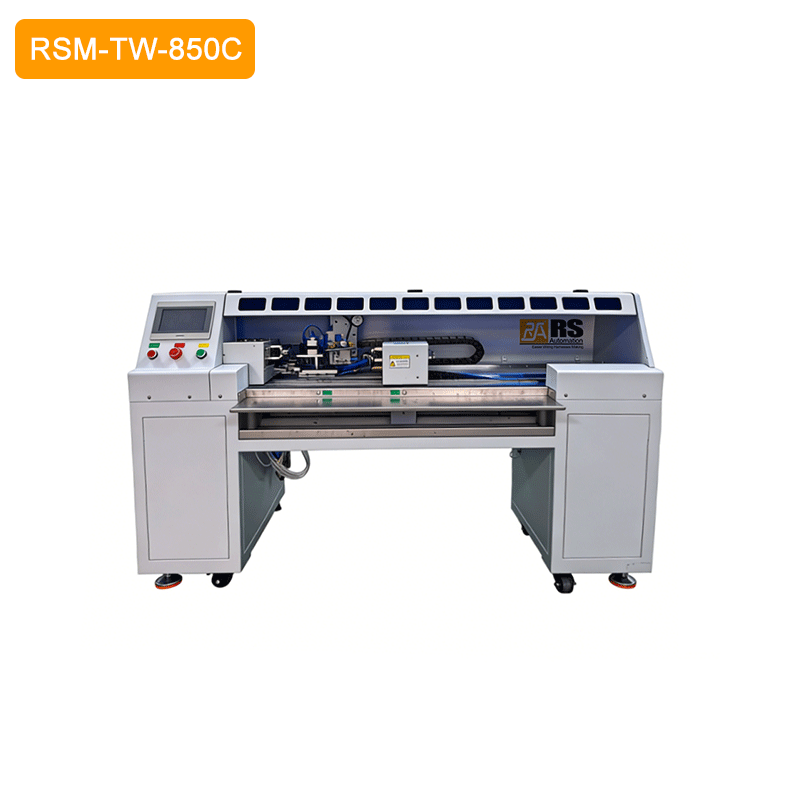

Automatic Tape Wrapping Machine RSM-TW-850C

Description

Feature

Suitable for tape wrapping of thin wire.
Integrated auto tape wrapping, tape cutting and wire releasing into one machine. No need to hold the wire harness.
Auto tape cutting and tape end pressing to reduce the labor cost.
Higher flexibility. Full tape wrapping and multi-section tape wrapping mode are available.
Wire twisting is prevent during tape wrapping by synchronous rotation of two pneumatic wire grippers.
Higher tape wrapping accuracy guaranteed by PLC and touch screen.

Specification

Model	RSM-TW-850C
Applicable Tape	PVC, flocking, cloth-backed, high-temperature tapes; ideally suited for mica, ceramic, and acetate cloth tapes (with liner).
Wire O.D.	3-10mm
Tape Roll I.D.	Standard Ф38 (other sizes like Ф32, Ф76..., please specify in advance)
Tape Roll O.D.	≤110mm
Wrapping Length	Max. 1000mm
Open End Length (Front)	≥15mm
Open End Length (Rear)	≥10mm
Spindle Speed	4500 RPM (Adjustable)
Machine Speed	0-30 (Adjustable)
Cycle Time (at medium speed)	15 sec/m (Full wrap)
Voltage	AC220V/DC24V 50/60HZ (110V available)
Power	1350W
Weight	300KG
Dimension	L1800mm×W700mm×H1070mm
Options	Paper winder; Safety light curtain
