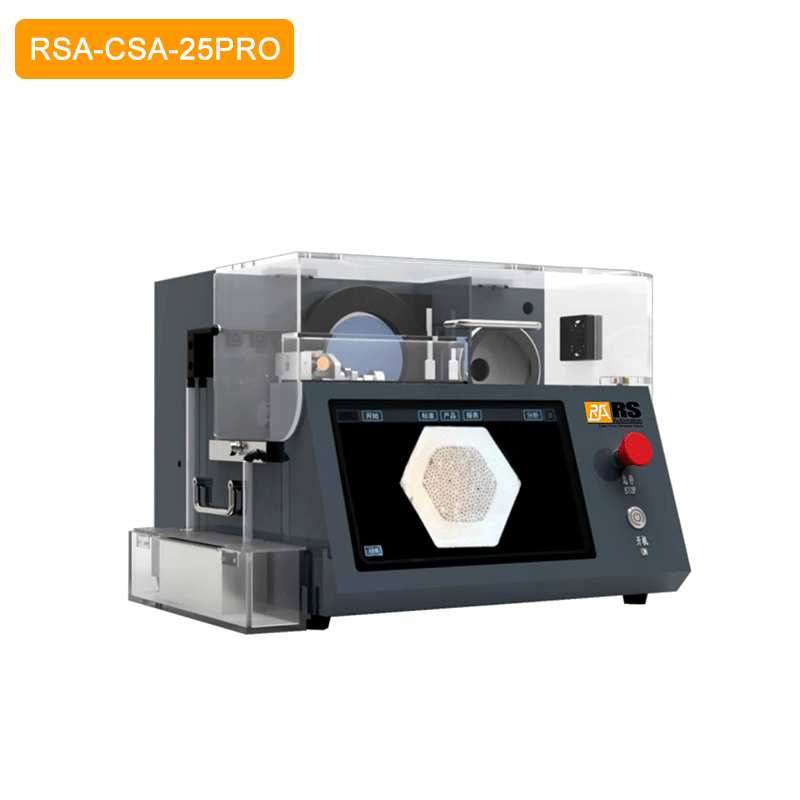

Automatic Terminal Cross Section Analyzer RSA-CSA-25PRO

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Multiple functions into one machine: automatic terminal positioning, cutting, grinding, corrosion, cleaning, focus, capture; One-click intelligent analysis and report generation.
  • Allows repetition of any single step (cutting, grinding, etc.) with one click for process optimization and fine-tuning.
  • Lower training cost compared to traditional manual cross-section analyzer.
  • Shadow-free lighting technology to guarantee uniform illumination across the cross-section.
  • Automatic image analysis and edge detection – no manual drawing required.
  • Built-in IoT technology to allow all reports uploaded to the cloud in real time for easy management.

Specification
Model RSA-CSA-25PRO
Function
 Manual terminal placement; Automatic terminal positioning, cutting, grinding, corrosion, cleaning, focus, capture; One-click intelligent analysis and report generation.
Applicable Wire O.D. 0.05-25mm²
Camera 12 megapixel industrial camera
Lens 16 megapixel machine vision lens with dual optical path switching
CPU Quad-Core 1.83GHz
Storage
 23G
Display
 11.6 inch touch screen
Screen Resolution
 1920×1080
Lighting
 Self-Developed Adjustable LED Lighting
IOT Function
 Yes
Auto Edge Detection/Marking
 Yes
Intelligent Analysis
 Yes
Weight
 30KG
Dimension
 L440mm×W360mm×H480mm

PDF Specification Download
RSA-CSA-25PRO.Pdf
