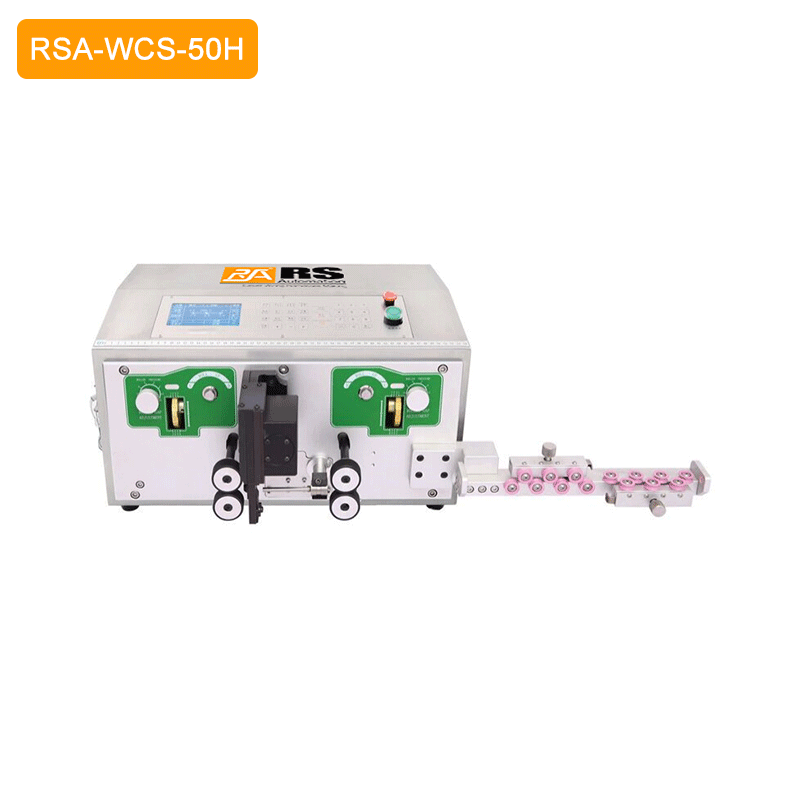

Large Gauge Cable Stripping Machine RSA-WCS-50H

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • High-speed cutting and stripping for large gauge cable with single end or both ends.

  • Highly flexible. It can be applied to different wires only by changing the guiding tube.
    Great precision. All the mechanisms are equipped with self-compensation function, which greatly reduces the error.
    User-friendly. All parameters can be set on HMI, and Chinese/English interface, to ensure easy setup for each function.
    Up to 99 groups of processing parameters can be stored, which greatly saves the adjustment time and materials waste.
    Window stripping mechanism is optional, which is capable of up to 32 window stripping on one wire.
Specification
Model RSA-WCS-50H
Function
 Single-end/both-ends wire cutting and stripping (full striping, half stripping, window stripping)
Cutting Length 55-99999 mm
Cutting Accuracy
＜1‰
Stripping Length
1-100mm (both ends)
Cable Size AWG#20-AWG#5 (0.5-16mm²)   O.D.＜8mm For shielded cable
Productivity
 3600pcs per hour (L=100mm)
Voltage
 AC220V 50/60Hz (single phase)
Air Source
 0.5-0.7Mpa
Power
500W
Weight
 55 KG
Dimension
 W580mm×D460mm×H450mm
Optional
 Wire feeder, wire collector, window stripping mechanism

Optional
Wire Feeder

Wire Feede I.D.  Wire Feeder Height
 Wire Feeder O.D.
For cable coil
 185mm
 110mm
 380mm
For spool cable
 24mm
 180mm
 400mm

Wire Collector
Length 2m/4m/6m/8m/10m/12m (optional)

Standard Parts
  • Power cord, Wrench, Guide pipe, Stripping blades,  Wire guide tube
PDF Specification Download Video
