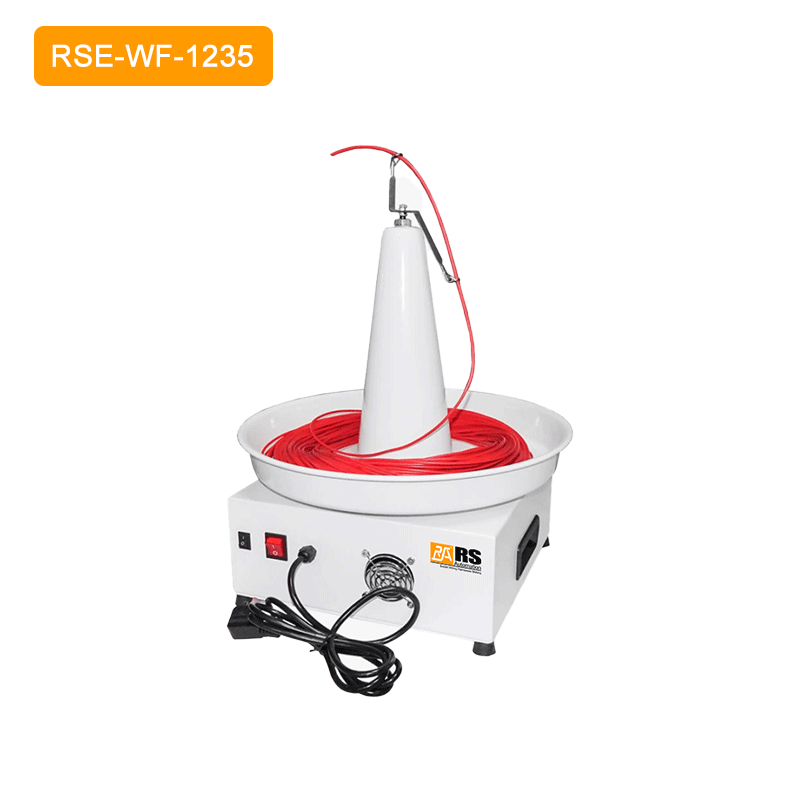

Automatic Wire Feeder RSE-WF-1235

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Suitable for all automatic wire processing center and wire cutting&stripping machine.
  • Forward and reverse wire feeding direction, switchable as needed.
  • No wire tangling and snarling guaranteed by built-in microcontroller.
  • Automatically detects and feeds the required wire length.
Specification
Model RSE-WF-1235
Feeding Direction Forward/Reverse
Application Feed wire for automatic wire processing center and wire cutting&stripping machine.
Applicable Cable
 		All electronic wires, excluding flat ribbon cables.
Recipe 10 groups
Cable O.D. 12-32mm
Load Capacity 15kg
Voltage
 AC220V
Weight
 8.8KG
Spool I.D.
 350mm
Spool O.D. 380mm
Spindle O.D.
 120mm
Overall Dimension
 L390mm×W390mm×H500mm

PDF Specification Download
RSE-WF-1235.Pdf
