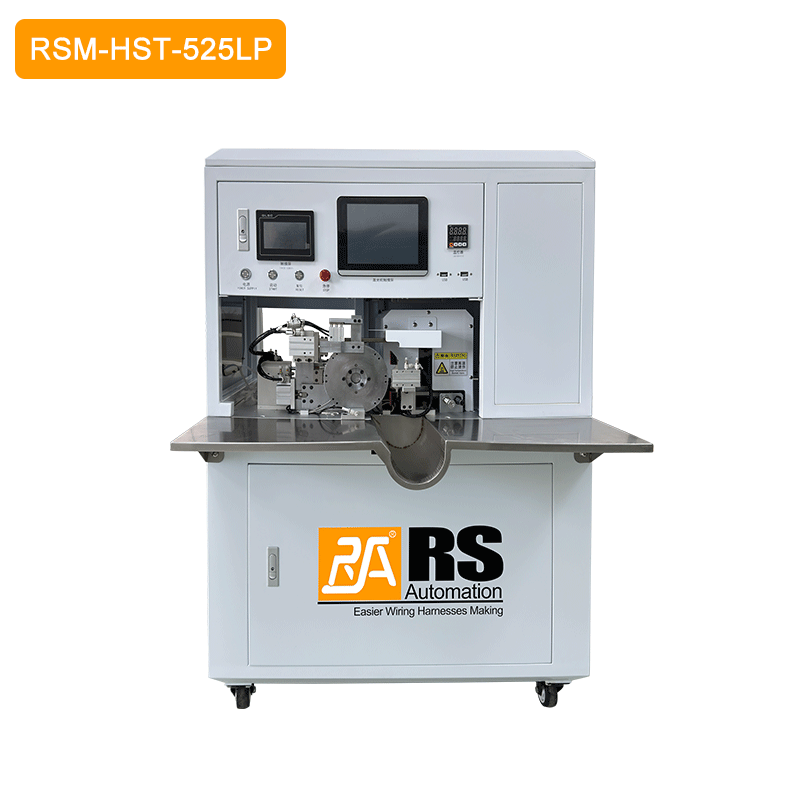

HST Shrinking Machine With Laser Printing RSM-HST-525LP

Description

Feature

User friendly. Equipped with PLC, industrial panel PC and HMI software.
High compatibility. Various wire sizes can be processed by quick changeover of the fixtures.
The laser printing content is adjustable and enables different printing on two wires simultaneously.
Sharp, waterproof and oil-resistant printing via UV printing technology, plus built-in memory.
Support excel file import, serial number printing and combined document printing.
Lower cost. Laser marking is consumable-free and enables printing on different colored tubes (white, red, blue).
With the system reset function to prevent the wrong setting of the processing data by the operator.

Specification

Model	RSM-HST-525LP
Function	HST tube auto loading, cutting, HST shrinking, tube laser marking
Tube O.D.	Φ2.0-φ10mm (standard)
Tube Baking Length	8-45mm (adjustable; fixture optional)
Baking Temperature	0-400℃ (adjustable)
Control Way	PLC/industrial panel PC/HMI software
Display	7inch HMI
Cycle Time	2.5sec
Productivity	1000-2000pcs/hour (depends on manual loading speed)
Cooling Method	Forced water cooling
Immunity Level	Interference Voltage 1500V_{(Peak-to-Peak); Pulse Period 1μs; duration 1 minute}
Air Source	0.5-0.65Mpa (no corrosive air)
Voltage	AC 220V; 50/60HZ (single phase)
Power	2500W
Ambient Temperature	0-50℃
Storage Temperature	-20℃-60℃
Humidity	10%RH~90%RH (no condensation)
Weight	165KG
Dimension	L900mm×W550mm×H1290mm
