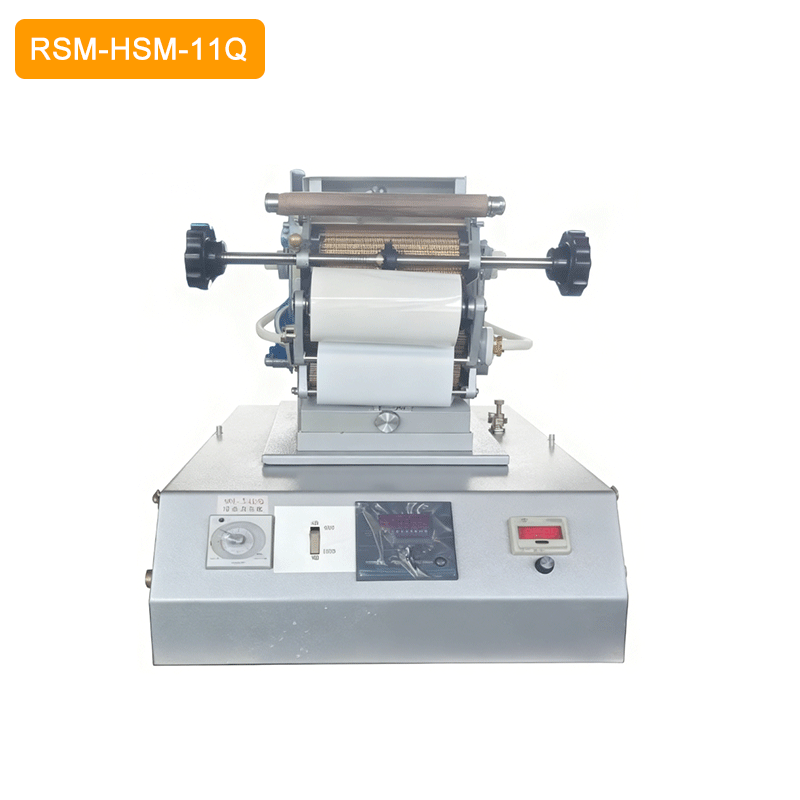

Pneumatic Hot Stamp Marking Machine RSM-HSM-11Q

Description

Feature

Uniform and crisp impressions guaranteed by cylinder instead of hand-operated stamping.
Suitable for surface hot stamp of PVC flexible tubing, HST, flexible film, insulated wire, nylon, and PTFE.
Hot stamping ribbon comes in black and white, mounted on the phenolic wheel. Each roll yields 8,000 impressions, printing 1–11 characters per cycle.
Hot stamp depth, stamp speed, and temperature are all adjustable.

Specification

Model	RSM-HSM-11Q
Application	Hot stamp on PVC flexible tubing, HST, flexible film, insulated wire, nylon, and PTFE
Wire O.D.	Φ3mm-φ6mm
Number of Character Wheel	11pcs
Character Wheel Width	2.5mm
Character Wheel Material	Copper, 45# steel
Character Size	2.4×2.4; 1.8×1.8; 1.2×1.2 (Customized acc. to wire size)
Character Face	Flat/Curved
Number of Characters per Cycle	１—11 digits
Hot Stamping Ribbon	Black, White
Stamp Count/Impressions	8000pcs per roll
Work Temperature	60-180℃ (depends on the wire insulation material)
Voltage	AC220V
Power	80W
Weight	About 35kg
Dimension	L355mm×W280mm×H360mm

PDF Specification Download

RSM-HSM-11Q.Pdf
