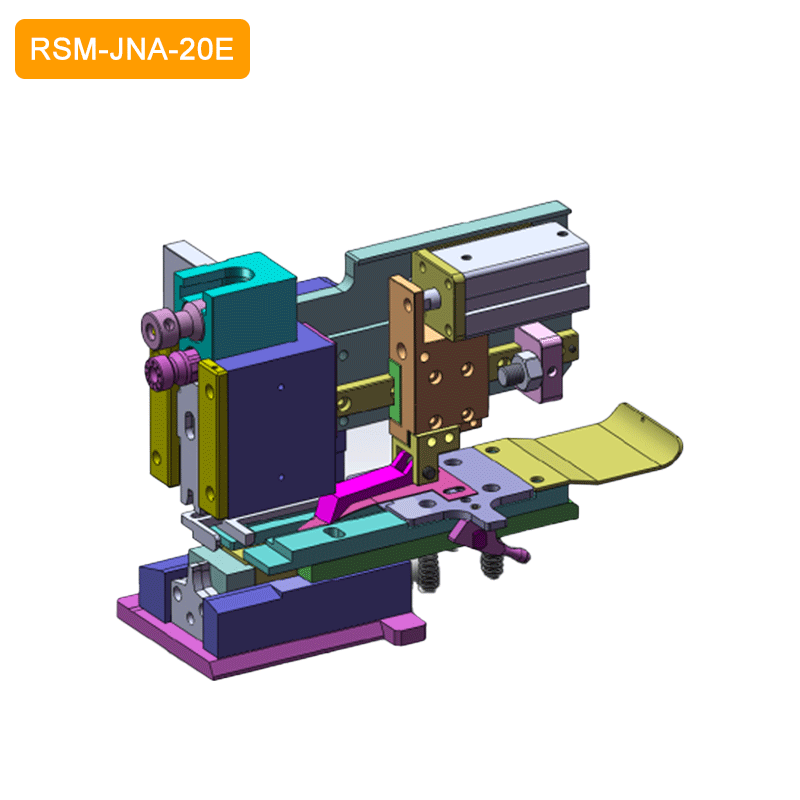

Pneumatic Crimping Applicator RSM-JNA-20E

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Continuous crimping height adjustment provides a 0.02mm resolution for C.H./I.H. with a 2.0mm range, which meet every rigorous demand on the crimping.
  • Modular framework to make adjustment and maintenance easier.
  • Terminal pitch 40mm become true easily and feeding speed can be adjusted with facility.
  • Save repeated invest. It can work for semi-automatic and fully automatic crimping machine for Komax, AMP, Mecal and so on;
  • Each applicator delivered will be attached with a terminal cross section analysis report.
  • Lower maintenance cost. Special surface treatment to ensure strong corrosion resistance.
  • Each spare part has its own P/N number for easier maintenance.
Specification
Model RSM-JNA-20E
Stroke 30mm
Feeding type

End Feed

Shut Height 119.7mm
Wire Size 0.08～6mm² (9~30AWG)
Terminal Thickness Max.1mm
Feeding System
 Pneumatic
Terminal Pitch 40mm
weight 5KG
Dimension
 L235mm*W92mm*H146mm

PDF Specification Download
RSM-JNA-20E.Pdf
