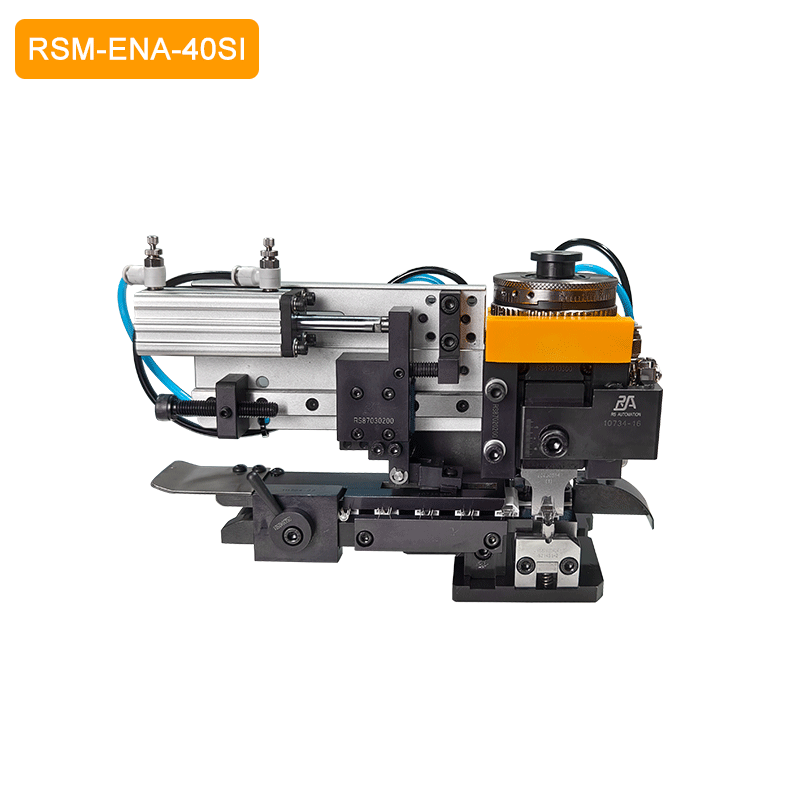

Pneumatic Crimping Applicator (Insulator Push-on Crimp) RSM-ENA-40SI

Description

Feature

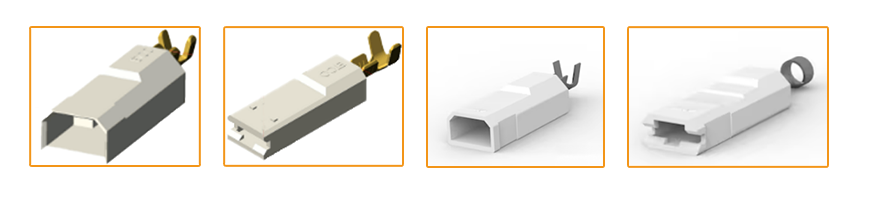

Especially designed for insulator push-on crimp of insulated products from ETCO,TE, AMP and other brands. (See terminal model list below)
Continuous crimping height adjustment provides a 0.02mm resolution for C.H./I.H. with a 2.0mm range, which meet every rigorous demand on the crimping.
Modular framework to make adjustment and maintenance easier.
Terminal pitch 45mm become true easily and feeding speed can be adjusted with facility.
Save repeated invest. It can work for semi-automatic and fully automatic crimping machine for Komax, AMP, Mecal and so on;
Each applicator delivered will be attached with a terminal cross section analysis report.
Lower maintenance cost. Special surface treatment to ensure strong corrosion resistance.
Each spare part has its own P/N number for easier maintenance.

Specification

PDF Specification Download
RSM-ENA-40SI.Pdf
