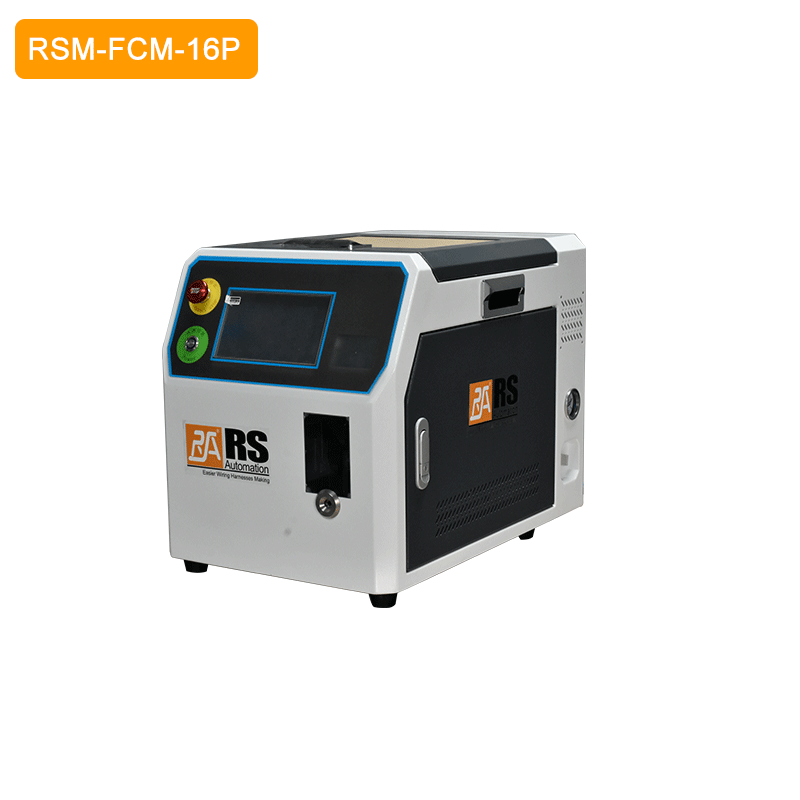

Ferrule Crimping Machine (Servo) RSM-FCM-16P

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • The vibration disc can be compatible with 10 terminal types. Only simple adjustment for switching.
  • Highly efficient guaranteed by combined electric and pneumatic systems.
  • Closed appearance design ensures safe operation.
  • User-friendly. Auto-sensed processing and foot switch trigger are available.
  • All parameters can be adjusted on HMI.
  • Support recipe storage for different processing parameters.
Specification
Model RSM-FCM-16P
Function Rotary stripping, parallel insulation pulling, rotary twisting, ferrule crimping
(clockwise/anti-clockwise rotation are available)
Wire Range 0.3-16mm² (RV wire and most common wire type)
(need samples to customize jig if wires ≤0.5mm²)
Terminal  Insulator length: ≤11mm; Contact length: ≤20mm
Stripping Length 6-30mm (adjustable on HMI)
Crimp Shape Square (servo crimping; crimping height adjustable)
Control Way Electro-pneumatic System Integration
Trigger Mode Auto-sense; button trigger; foot switch can be added
Inspection
 		Terminal presence check
Cycle Time
 3.2 sec per terminal (depends on wire)
Current
 10A
Power 1500W
Voltage AC 220V/50Hz (single phase)
Air Source
 0.5-0.6Mpa (dry and clean air)
Work Ambient
 0～35℃; 30～80%HR (no condense dew)
Weight
 62KG
Dimension L360mm×W520mm×H425mm

PDF Specification Download
RSM-FCM-16P.Pdf
Video
RSM-FCM-16P.MP4
RSM-FCM-16P(1).Mp4
