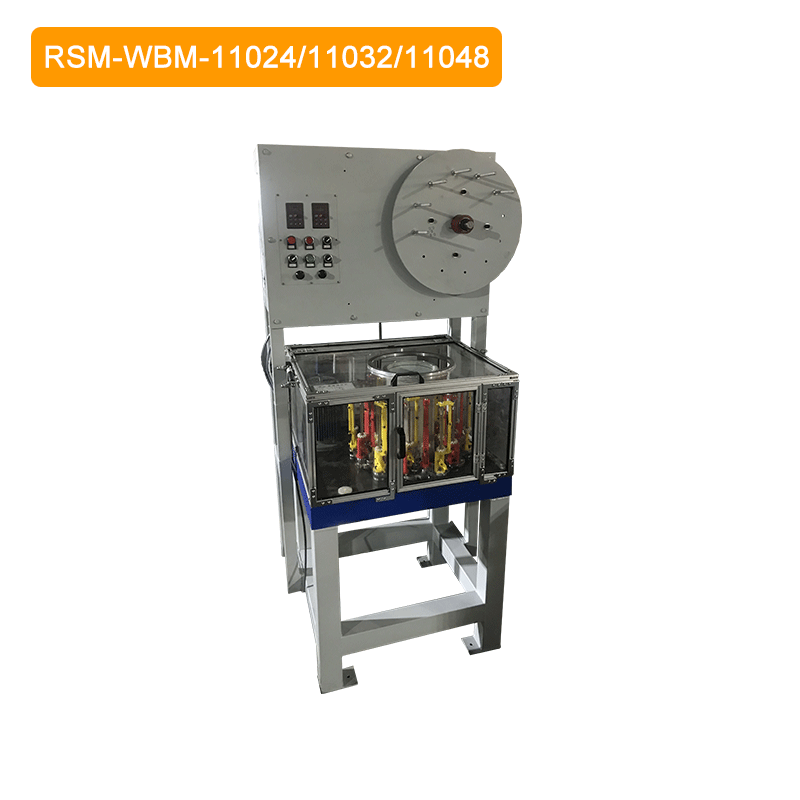

Wire Harnesses Braiding Machine (24/32/48spindles) RSM-WBM-11024/11032/11048

Description

Feature

Mainly used for wire harness braiding. Automobile assembly harnesses, special vehicle harnesses, aircraft harnesses,aerospace harnesses, etc.
Improved flexibility. Braiding density is adjustable, which can work for different requirements and purpose.
User-friendly. The buttons on the control panel are simple and clear, which make sure quick and easy operation.
Take-up wheels can be rotated forward or backward to achieve normal and reverse braiding and hide the braiding joint, thus improving the overall beauty of the wire harness.
Safety covers are applied to ensure safety while making manual operation more convenient.

Specification

Model Selection

Model	Safety Cover	Foot Switch	Harness Collector	Control Way	Remark
Economic	√	√	X	Inverter	Economic version. Need to hold harness for braiding
Universal(RSM-WBM-)	√	√	√	Inverter	Meet most of the nylon braiding needs
Advanced(RSA-WBM-)	√	√	√	Servo+PLC touch screen	User friendly with HMI. Higher precision braiding (precise control of braiding speed, braid density and braid pitch)

Standard Parts

Hex socket bolt, Elastic cylinder pin, Lid for spindle, Guide bar, Rotating base, L-type yarn control, Spindle bar, Guide slider, Spindle spring, bobbin, Nylon insert block, X block, Ceramic eyelet

PDF Specification Download
