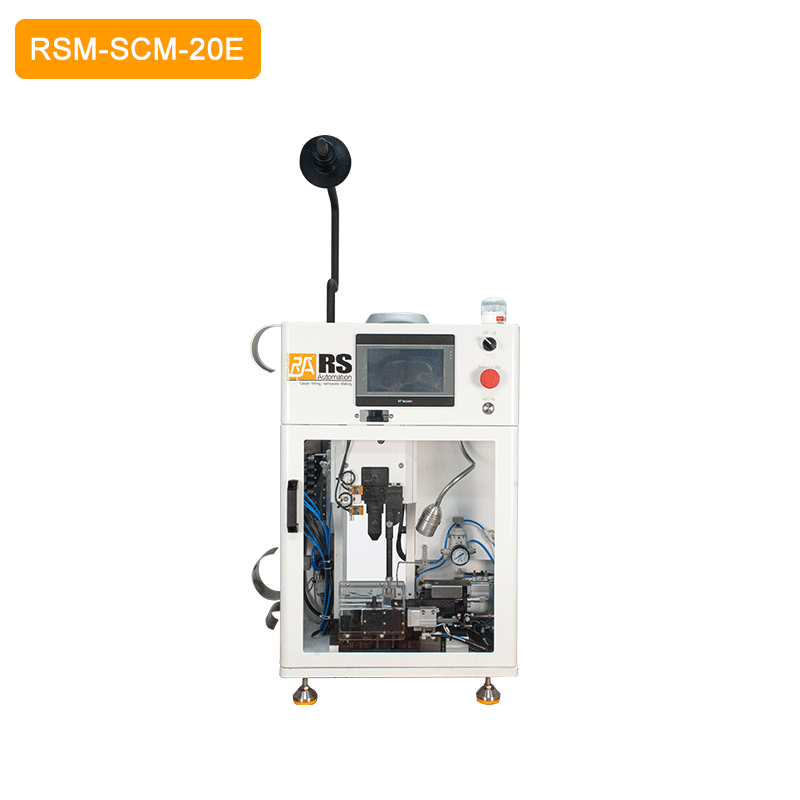

Wire Stripping and Crimping Machine RSM-SCM-20E

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature

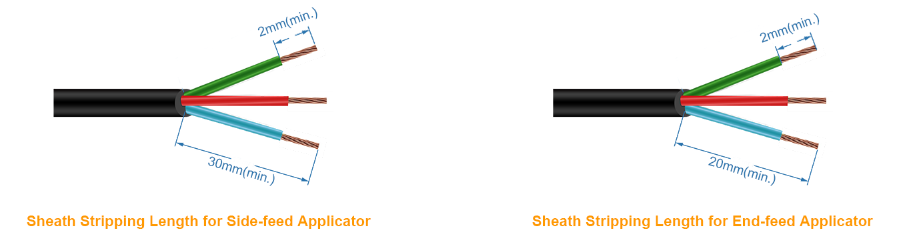

  • Sheath cable with multi-core wires applicable. Sheath strip length could be very short: the Minimum is 30mm for side-feed applicator and 20mm for end-feed applicator.
Applicable Applicator
  • Multi-core wires Applicable. Their strip length could be very short: the Minimum stripping length of the sheath is 17mm. Minimum residual insulation length of inner core is 10mm .

  • High productivity with extremely short cycle time, only 1.2 s.
  • Traditionally, in the production line where stripping and crimping are separated, wire strands disorder or time consuming would occur, which can be perfectly settled by RSM-SCM-20E.
  • Stripping and crimping can be completed with only one insertion, which ensure easy operation.
  • Cutting depth and Stripping length can be adjusted by Micro Regulating Rod.
  • Less noise than traditional terminals, and more power saving.
  • Adopt 7 inch HMI operation interface, the parameters are visualized and easy to understand.
  • CFM/A is Applicable.
Specification
Model RSM-SCM-20E
Applicable Applicator European Crimping Applicator(side feed/end feed),European Pneumatic Applicator
Stripping Length Range 2mm-10mm(single wire)
Cable Range 0.35mm²-3.0mm² （Customizable）
Crimping Force 2 ton
Stroke 40mm
Shut Height
 		135.8mm
Power 220v (single phase)
Air Source 0.5~0.8Mpa
Weight 120kg
Dimension
 L500mmxW350mmxH780mm

Crimping Force Monitor (Optional)



PDF Specification Download
