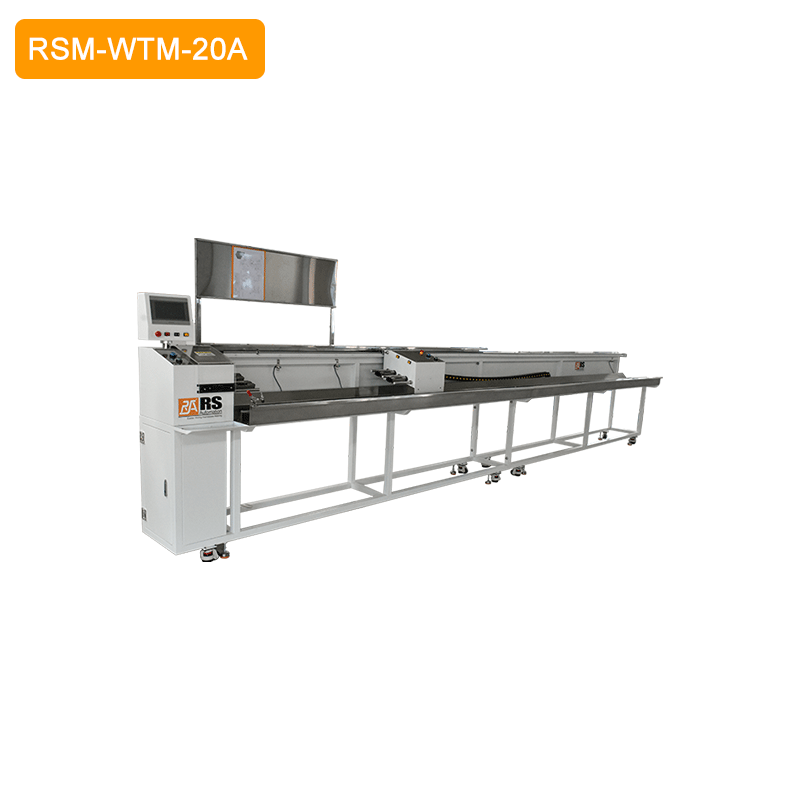

Wires Twisting Machine RSM-WTM-20A

Description

Feature

Enhanced productivity thanks to 2 sets of twisting units, which ensure 2 groups of wires to be twisted simultaneously.
With servo motors and touch screen for higher twisting pitch precision and easier adjustment.
Efficient, flexible and reliable. Adopt fully enclosed aluminum alloy grippers, combining optical fiber automatic sensing (which can be turned off) and manual buttons.
Automatic tension compensation system allows higher twisting speed without compromising pitch quality.
Lower labor intensity with automatic positioning of the rear wire holder/twisting unit.
Safety cover to prevent personal injury during twisting.
User-friendly display for parameter setting of twisted length, forward twisting value and reverse twisting value.

Specification

Model	RSM-WTM-20A
Wire Size (Single Wire)	0.2-2.5mm²
Twisted Length	200-11000mm(wire releasing rack is customized based on your twisted length)
Twist Pitch	15±2mm, 20±2mm, 25±3mm, 35±4mm, 45±5mm
Open Ends Length(Both Ends)	40-100mm（include terminal length）
Twisting Recipe	1000 groups can be stored
Motor RPM	1400r/minute
Power	1950W
Air Source	≥0.6Mpa
Voltage	220V 50Hz 5A
Weight	Customized acc. to twisted length
Dimension	L2000-12000mm×W700mm×H1400mm

PDF Specification Download
RSM-WTM-20A.Pdf
