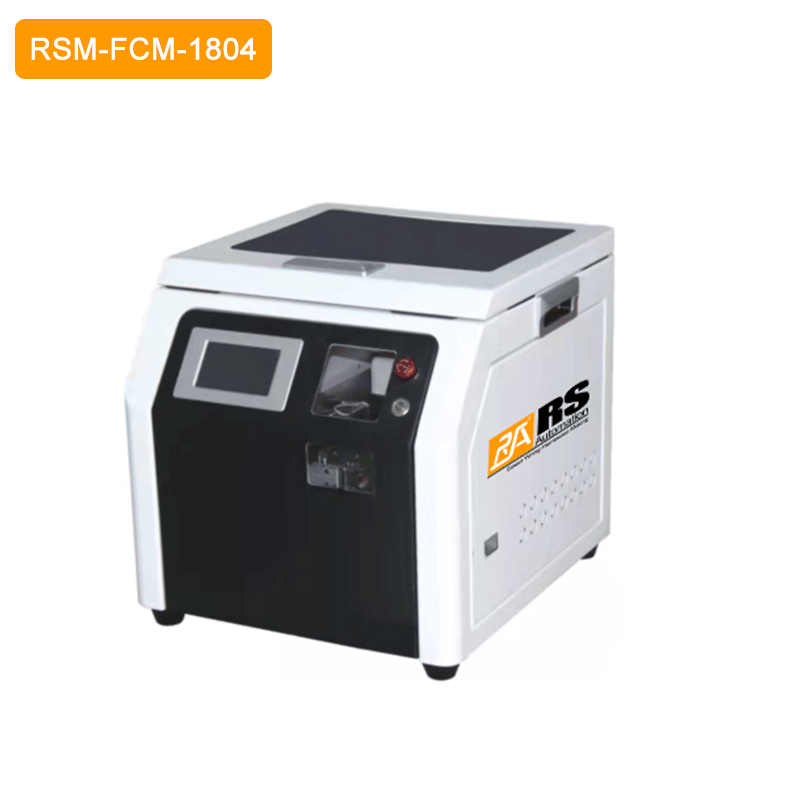

Ferrule Crimping Machine RSM-FCM-1804

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Adopt motor drive control and rotation stripping way to guarantee the high accuracy wire stripping.
  • Along with the wire twisting function to prevent the strands crimped not properly.
  • The force of wire clamping and ferrule crimping is adjustable, all the parameters can be set on HMI.
  • Equipped ferrule missing testing function and SMC Pneumatic Components.
  • Quick  processing capacity shift along with feeding track and accessories.

Specification
Model RSM-FCM-1804
Capacity 0.3mm²-4mm²
Ferrule Length Max. 12mm
Crimping Shape Square, Hexagon
Jacket Stripping Length Min. 40mm
Cycle Time 2.5mm
Productivity 1000-1300pcs/ h
Storage 100 pcs
Power
400W
Voltage
 AC220V/50/60HZ
Air Source
 0.5-0.7Mpa
Weight 68kg
Dimension L430mm x W505 mm x H425mm

PDF Specification Download
RSM-FCM-1804.Pdf
Video
RSM-FCM-1804.Mp4
